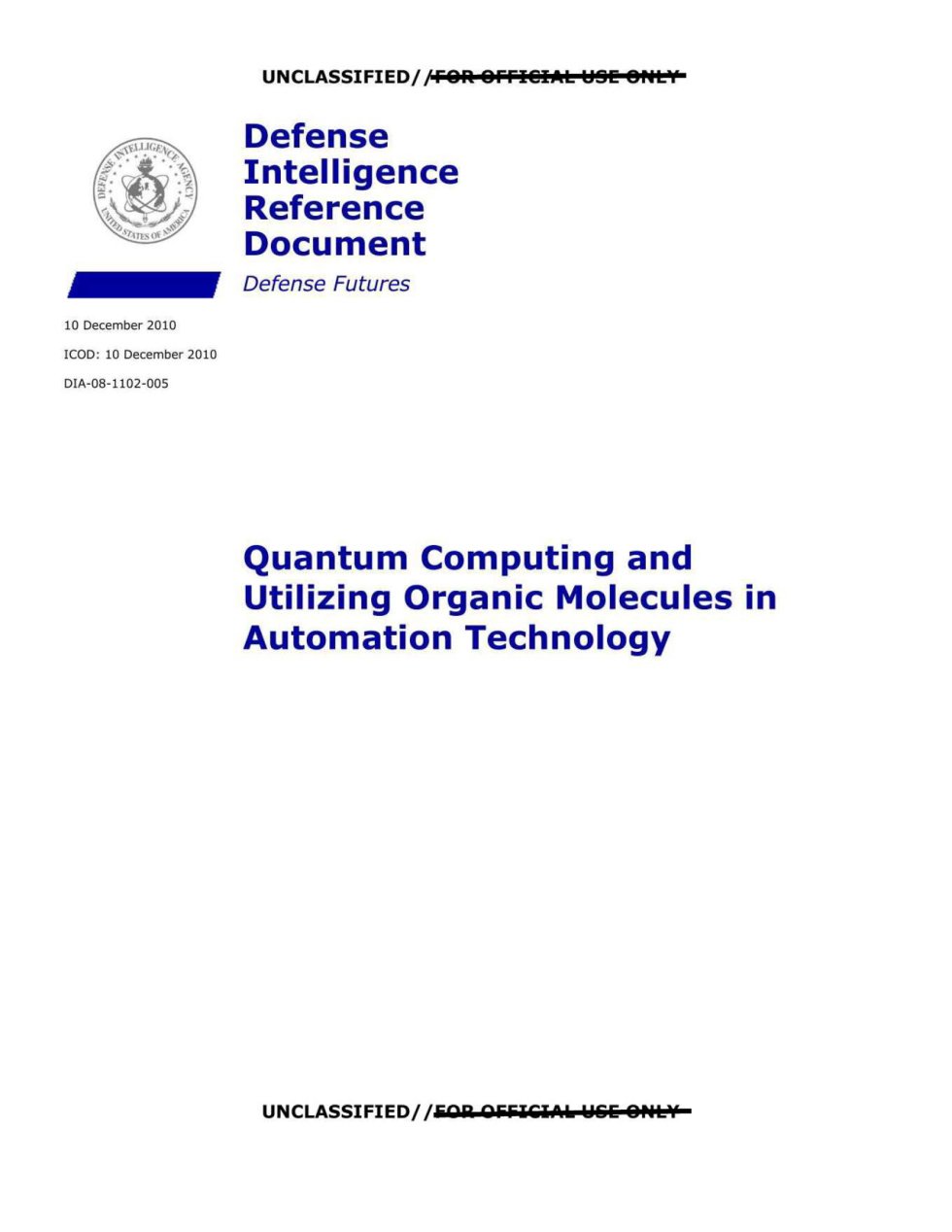

UNCLASSIFIED/ ,<FOR. OFFI@IAL l!ISI!! 8HLY Defense Intelligence Reference Document Defense Futures 10 December 2010 !COD: 10 December 2010 DIA-08 -1102 -005 Quantum Computing and Utilizing Organic Molecules in Automation Technology UNCLASSIFIED/ /FOR 066iliCili.t.k WS& 8,.Llf

UNCLASSIFIED/ /FOR: 8FFl@IJIIL tt9I!!! er•t I pitch.d By comparison, atomic diameters range from around 0.1 nm to 0.5 nm, with silicon ~0.2 nm, or only a factor of 100 smaller. As circuit elements decrease in size, the number of atoms making up the bulk materials decreases and ignoring individual quantum effects becomes problematic. This is the mesoscopic scale. At this size, quantum effects can introduce noise into the circuit as the unpred ictable e nature of the underlying wave functions. Once the circuit size shrinks to only a few atoms, quantum effects will emerge from the noise domain to dominate the electrical behavior. It is thought that exploiting rather than avoiding quantum phenomena may prove useful in this regime for inorganic technologies. Following Moore's law, in less than 10 years inorganic circuit elements will be less than 5x5 molecules in 2-D extent. (Molecular machines built of organic components, primarily DNA, are discussed in a later section.) Shrinking traditional silicon-based general-processing technology to this microscopic scale is one motivation for developing new types of machines based on quantum phenomena, but it is not the only one. Smaller circuit elements decreased the settling time of transistors and thus gates on CPUs, allow ing increasing clock speed (the CPU can execute the next instruction with shorter delay from the last instruction). CPUs today get most of their performance with parallel architecture, executing several instructions at once in different pipelines. Using smaller circuitry in general consumes less power, and this allows more parallel elements to be packed into a reasonable wattage package. The march toward smaller circuitry is continuing unabated so plann ing for the eventual quantum­ dominant characteristics is essential. It is common to use the analogy of the laser to elucidate the application developments possible with quantum computing. In one sense, the laser is just another hardware technology that makes light. Earlier light technologies include organic-fueled fire (~50,000 BC), incandescent bulbs (early 19th c.), and fluorescent chambers (mid-19 th c.). The light source to utilize is not governed by the highness of the technology, but by requirements of the application. One can read by laser light, but older and cheaper incandescent light will provide superior perceptible illumination to a page. Traditional semiconductor-based computing is cheap and plenty powerful for controlling navigation or driving ship status displays. The laser analogy is further revealing in that it is quantum effects producing a special kind of light that is coherent. Coherent light is single wavelength with all photons travelling in the same direction .f This coherence is a natural consequence of conservation of momentum in the absorption/emission process. (4) Coherent light is very useful for some applications that require low dispersion; for example, bouncing a beam off of a mirror on the moon, or the more pedestrian pinpoint highlight of a projected PowerPoint presentation. The practical uses of the laser are not universally bigger or smaller, faster or slower, or more or less energy efficient than the other hardware technologies that produce light, they are just different. Similarly, when we think of what hardware and applications will arise for quantum computing, they too are not necessarily bigger, smaller, or faster than traditional methods; they are just different, and many could not be accomplished with traditional technologies. (5) d Pitch is the distance between repeat circuit elements. What is most interesting about the 22 nm technology is that it was produced with 192 nm lithography. • At the mesoscopic scale, indiv idual wave functions are not prepared a priori or controlled in their propagati on. Some of the noise components are correlated . 'Laser light is actually very narrow bandwidth rather than single-valued. UNCLASSIFIED/ /FOR OFFI&Iit.k W&E OHkY 9

UNCLASSIFIED/ /POK: OPPIClltL U.!r:: Oflt I APPLICATIONS OF QUANTUM COMPUTERS Although smaller circuitry and supercomputing is a motivator, the driving application behind quantum computing is cryptography. First, there is cracking cipher codes. The vast majority of secured communications utilize a method known as public-key cryptography . In this method, the code is based on the prime number factors of a very large integer which is publically available. The private key is one of the integer factors and this allows the receiver of information to decipher the code easily. The strength of this technique is that traditional computer algorithms will take a long time to guess the correct factors of the public key, on the order of months. 9 Traditional brute force methods require a number of steps that increase as an exponential function of the size of the public key. However, in 1994 Shor presented a quantum algor ithm that would only require a polynomial number of steps, thus dramatically decreasing the required time to factor, assuming a quantum computer would ever be physically realized. (6) This speedup is primarily due to the nature of quantum waves; specifically, they can follow several parallel paths instead of the usual stepwise procedural execution of instructions. This accelerat ion by superposition concept is more easily understood in a random search of data. Consider an algorithm that has a 50% probability to locate a specific phone number in a database of N phone numbers by a random search. The procedural algorithm on average will require O.SN inquiries to locate the correct number. A quantum algorithm on the other hand can be devised that accumulates information by examining multiple numbers with each step. Such a scheme has been shown to reduce the number of examinations required to .JN. (7, 8) The superposition of states allows examination and processing of several tape cells simultaneously in a Turing-inspired machine. Second, there is quantum communication. Once public key encryption is easily broken by the quantum computer, a new cipher needs to replace it. The canonical quantum commun ication experiment defines a sender, Bob, and a receiver, Alice. In most scenarios, Alice and Bob communicate over a distance using entangled particles and a trad iti onal open line. The open line relays information about measurement sett ings, but is useless to an observer without access to the entangled wave function (entanglement is discussed below, and the open line information is an analogue to the public key of current ciphers). The other advantage of this setup is that almost any disturbance in the commun ication line between Alice and Bob would destroy entanglement and thus the information would be lost instead of intercepted. Additional archetypical participants in a communications experiment/scenario follow the English alphabet: Charlie (or Chuck if his intent is malicious), Dave, Eve, etc. Quantum communication is thus an application replacing one performed by a general purpose computing machine ; the classical and quantum systems do not operate in similar fashion other than the function of securely transmitting information. Additionally, quantum communication has been suggested as a method to connect isolated quantum systems without disturbing closed box requirements like classical interventions would. (9, 10) Beyond cryptography is a third application, quantum metrology, where time and/or distance are measured to an extremely high accuracy . A fourth obvious application is simulation of quantum systems. (11, 12) 9 Or hours if one has farms of supercomputers. The point is that the value of most communication is much smaller than the cost to decipher by brute force. The 128-bit web standard is a compromise between security and speed. UNCLASSIFIED/ /POK: 9ffl@IAl W&li 8P◄ IL¥ 10

UNCLASSIFIED/ /EAR OEFIClt.k WSIE ertt I THE CLOSED BOX AND FAULT TOLERANCE In traditional silicon transistor circuits, once a bit is set to 1 or O by a gate or other device locking the output voltage, that value is expected to remain through subsequent clock cycles until deterministically changed.h Additionally, traditional circuits behave by the same rules for each clock cycle; that is, as more information is processed, repeated gate operation does not deteriorate the bit latching mechanism. This behavior is achieved by constantly providing energy to the circuits. Any interruption in this constant need for power from the outside and the integrity of the information in the computing circuit is lost. 1 A fundamental principle of quantum mechanics is that any external influence on a system necessarily disturbs the state of that system. This influence could be external disruption or internal leakage - either interaction will change the internal quantum state. This destructive process is known as decoherence. External influences will disturb the system and thus the circuits need to be isolated from the rest of the universe, also known as the 'closed box' requirement. Trial to trial variations in a quantum circuit produce an increasing deviation from an initial phase as the wave function evolves. This trial-to-trial deviation causes decoherence on a timescale termed T2*. Although a single trial in a quantum circuit could retain coherence longer than T2*, absent external influence the isolated internal circuit components must eventually come to thermal equilibrium through random processes: this occurs on timescale TL Moreover, the closed box cannot be perfect since a useful device requires some kind of input and output, thus some small interaction with the external environment is necessary. Random interactions with the environment from this isolation 'leakage' will dephase internal signals on timescale T2. These three time constants that describe the internal signal decays are very similar to the same named quantities in nuclear magnetic resonance (NMR). NMR is indeed a technology path under development for quantum circuits. Each technology and hardware design will be characterized in its isolation from external and internal influences by T2* (stable repeatability), Tl (resistance to entropy), and T2 (isolation from the rest of the universe). No design can be completely free of decoherence and the next consideration is how much decoherence is acceptable, or more precisely, what is the fault tolerance threshold for successful operation? Fault tolerance isn't much of a consideration in traditional processing architecture,i although it is a major consideration in storage and communication of information. To illustrate fault tolerance, consider a scheme of hard disk storage configuration where each 8-bit byte is written across 9 disks in a stripe-set configuration (one bit per disk, read in parallel). The extra disk holds parity information about the byte. Consecutive bytes shift the location of all bits one disk so the parity information isn't all stored on the same disk.k In the event one disk fails, each byte can be reconstructed from the other 8 disks using a software algorithm that automatically starts when the disk failure is detected. The broken hardware ca n be replaced and the data reconstructed while the system is operating in this slower 'limp' mode. This storage system is said to be fault tolerant. The h For those new to quantum phenomena, it may seem redundant to use the phrase "deterministically changed ." The phrase emphasizes the point that absent any error, classical circuits are always changed by intent, while quantum circuits include the element of random occurrence . ; Here we refer to the processing circuits themselves. Some types of memory and long term storage can of course hold information in isolation indefinitely . J A non-determ inistic result in processing hardware causes a fatal error in current des igns. k The bitwise stripe-set is instructive on the principle at hand, but for engineering considerations , more complex configurations are used in practice. See Wikipedia "RAID" for actual data distribution schemes . UNCLASSIFIED// FOR OFFICIAL YSE 8P.k¥ 11

UNCLASSIFIED/ /fQR OFFICI0k WSE 8HLI drive failure detection and algorithm takeover in the readout phase is the error correction scheme. In a quantum system the error correction is accomplished in a similar manner; that is, the state of a qubit is defined across multiple subspaces of the logic space and then several measurements are performed on the subspace that do not disturb the state itself. The original state can be reconstructed by the partial measurement. As an illustrative example consider the one-qubit space defined by an electron spin-up or spin-down. First, re-define this 1-d state in an oblique three-dimensional system such that spin-up is in the (+x,+y,+z) octant, and spin down is thus in the (-x,-y,-z) octant. If one measures x as positive the original state was up; measuring x and y both positive provides additional assurance the state was actually up. Measuring x and y different allows z as a tie-breaker. In this example system, 33% error rates are allowed. Of course realizable systems are more complex and only tolerate error rates in the 3% range. This difference is mainly due to the need to disturb the system as little as possible in what is known as a quantum non-demolition measurement (a QND measurement). (13, 14) In summary, fault tolerance is possible if a QND mechanism to measure qubits can be demonstrated. SCALABILITY Once a closed box has been constructed, the next consideration in successful quantum information processing (QIP) technology is whether circuit elements are scalable. That is, whether elements shown to perform as quantum bits can be combined into larger circuits at a reasonable cost of resources (computation time, decoherence time, physical space, or required power). The exact nature of the required engineering scale-up is specific to each technology. The unit of QIP (quantum information processing) is the qubit. 1 Different from digital logic, quantum mechanics increases the information content in N qubits through superposition. That is, quantum waves can travel through several paths and contain a superposition of states, increasing the amount of information in each channel. Furthermore, any system of N qubits can have degrees of entanglement. This entanglement makes the simple example state (1,0,0) different from (1,0,0) with (x,0,0) entangled, different from (1,0,0) with (1,0,x) entangled, etc. When there are 4 qubits, entanglement can occur with 2, 3 or all 4 bits, as well as 2 with 2. The logic space quickly grows to Bunyanesque proportions and is easily outside of the rea lm of simulation or even representation by Nor even N2 classical bits. Considering that one could start with qupits or qudits (see footnote I) it is quickly obvious that quantum computers have enormous computational potential when scalable. UNIVERSAL LOGIC The very large numbe r of possible states of a quantum computer spans what is known in mathematics as a Hilbert space, a generalized version of Euclidean space with arbitrary (finite or infinite) dimension (Euclidean space having 3 dimensions). The concept of a universal logic requires that this large Hilbert space be accessible with a finite set of control operations. For most designs these control operations are small in number and are the quantum analogues of digital gates performing operations on qubits. 1 For pedagogy, the discussion is limited to qbits ; however, p and d states could also be used as a basic unit (qpits or qdits ) thus greatly expanding the possible Information content In a single channel. UNCLASSIFIED/ /FOR &FFl&I.Tik WSE &Hk\f 12

UNCLASSIFIED//FOR. 8FFI@IAL l!ISI!!! er~t I Two special schemes that operate differently than digital analogues of gate-based technology are adiabatic and cluster-state quantum computation . In an adiabatic design, the answer is the ground state of a complex network of interactions and the interactions are slowly turned on to evolve qubits from the initi al state to the final ground state . In the cluster-state scheme, the system is placed in a particular state through use of a small set of control gates and the output is repeatedly measured using arb itrary basis (the fault-tolerance mechanism). In the adiabatic case, the computation is 'programmed' in the setup of interactions. In the cluster-state case, the calculation produces a superposition of states that need several measurements to ensure correct interpretation. Both schemes have been shown to be equivalent to gate-based circuit technologies. (15-17) INITIALIZATION AND MEASUREMENT Implied in the discussions above is the ability to set the quantum computer into a known initial state, measure various states during computation if needed, and output the final state. These processes can be tricky while maintaining isolation and low entropy. The initialization and measurement techniques are discussed with each technology. The Quantum Dot Approach A major obstacle in the quest to design and construct a radically new kind of inorganic quantum computer has been finding a way to manipulate the single electrons that are likely to constitute the new machines' qubits . The ability to manipulate and alter a single electron without disturbing the trillions of electrons in the immed iate surround ings has become a research focus for many studies. (18) (19)(20) A cand idate is to utilize properties of the intrinsic spin of the electron. In 1925, Austrian physicist Wolfgang Pauli proposed that an electron in a quantum state can assume only one of two states-"spin-up" or "spin down." (21) One approach to manipulate spin state and electrical charge independently for use in quantum computing has arisen in the quantum dot. Quantum dots (QDs) are tiny islands within a solid state lattice where electrons experience charg ing effects as well as quantum confinement, like an electron in an energy level around a nucleus. (22) Besides fundamental insights into matter, these artificial atoms can also work as building blocks for the control of electronics at the single electron level. The so called single-electron transistors are able to switch on and off electron transport through a dot by means of electrical gates using the effect of Coulomb blockade. Conversely, one can use spin rather than charge to control electrical conduction in mesoscopic-scale electronics; such "spin-controlled electronic devices," and the ir development and study, are termed spintronics. (23) Exploiting the spin degree of freedom, a quantum dot can act as a spin filter (24)(25)(26) or as a spin-blockade device. (27) Quantum dots have been proposed as host for an electron -spin qubit . Arrays of such quantum dots with tunable tunnel-couplings between them would work as a universal quantum computer. (28) Recent progress in this field using GaAs-based two-dimensional electron gases is impressive (29), though decoherence can arise from spin-orbit and hyperfine interaction with the nuclear-spin(s) of the host material (30) (31) (32). These decoherence effects can be reduced by using a lattice structure with low magnetic moment. Carbon has near zero magnetic moment due to the six each paired protons and neutrons in carbon isotope 12C; a small net magnetic moment comes from the natural 1% contamination of 13C. UNCLASSIFIED//fdk OFFICIAL U:!I!!! 9HL'I 13

UNCLASSIFIED/ /EOA QFFl&Il.l Y81: 8HtY Electrostatic Quantum Dots in Graphene The graphene form of carbon, a hexagonal sheet array single atom thick, is a candidate substrate for quantum dots. However, two fundamental challenges need to be overcome before graphene can be used to form and operate spin qubits. First, it is difficult to create a tunable quantum dot in graphene because of the absence of an energy gap in the band spectrum. Electrons in such low energy gap materials exhibit Klein tunneling, and complicating efforts to confine particles (33) (34) (35). Second, due to the valley degeneracy that exists in graphene, (36)(37)(38) it is non-trivial to form two-qubit gates using Heisenberg exchange coupling for spins in tunnel-coupled dots. Attempts have been made to solve the first problem, such as to use suitable transverse states in graphene ribbons to confine electrons (39), to combine single and bilayer regions of graphene (40), or to achieve confinement by using inhomogeneous magnetic fields. ( 41) The second problem has only been realized recently, and scientists have created a method to confine the electrons in a unique valley through suitable transverse states in a ribbon of graphene which appears to overcome these limitations. (42) The approach as used in GaAs quantum dots ( 43) is not possible due to Klein tunneling. Figure 1. Hexagonal structure of graphene. Several ways are possible to induce a gap in bulk graphene. In general, quantum confinement can lead to the opening of a gap in ribbons (44) (45) (46). Within the tight­ binding approximation of graphene, armchair boundary conditions can lead to an insulator and gate-tunable quantum dots (Figure 2). Another promising direction is to start with bulk grapheme and induce a gap via the interaction with a substrate. (47)(48)(49) Three quantum dot architectures that allow for bound states tunable by electrostatic fields are: (i) graphene nanoribbons with armchair­ terminated boundaries, (ii) discs in single-layer graphene, and (iii) discs in bilayer graphene. Special emphasis is given on the ability to controllably break the valley degeneracy, a prerequisite for two-qubit spintronic gates (50) (51) in graphene. UNCLASSIFIED/ /FOR AEEICIAk W&i &Ptllf 14

UNCLASSIFIED/ /FOA 8FFl&I.t.k WSli 8,.k\f Quantum Dots in Graphene Nanoribbons Graphene ribbons are one dimensional stripes of graphene. They can be considered as unfolded carbon nanotubes. Graphene ribbons were proposed by Nakada et al in 1996 (52). Nakada used the same single orbital tight-binding model that successfully portrays two­ dimensional graphene as a semimetal; graphene ribbons are either metallic or semiconducting depending on their crystallographic orientation and width. More realistic calculations using the Hubbard model in a mean field approximation and density functional calculations show that zigzag ribbons are insulating due to the magnetization of their edges with opposite spin orientation in each edge. It has been found that this anti-ferromagnetic insulator phase has a hidden underlying ferroelectric order that can be described as excitonic insulator whose order parameter is the spin-resolved dipole operator, the analog of the spin current operator (53). Long (gl µm) graphene nanoconstrictions display gapped behavior: conduction is suppressed by several orders of magnitude for a wide range of gate voltages around the Dirac point, and for tens of millivolts of source-drain bias (54) (55). Figure 2. Quantum dot in graphene nanoribbon. A ribbon of graphene with semi-conducting armchair boundaries is schematically shown. Two barrier gates (blue) define the rectangular size of the quantum dot (with width W and length L). A back gate (red) allows one to shift the energy levels in the dot. Two or more quantum dots of this type can be easily put in series in a single nanoribbon. UNCLASSIFIED// FOR OPPICIJ!tt U:!I!! 8HL\S 15

UNCLASSIFIED/ /FOR. 8FFI@IAL l::181: 8HL'I E C 11 IUo2Ll u <l-........, V I I II I 10 11 loll - R 0 R r Figure 3. Left; Energy diagram for quantum dot in single-layer graphene. Right; Bound state levels as function of dot radius . Graphene Disc in Single-Layer Graphene Single layer graphene is attracting attention because its charge carriers are massless, relativistic particles (56). The relativistic effects result from a unique, zero-gap band structure that leads to quantum states described by the two-component Dirac-Weyl equation. This allows relativistic physics to be explored in a solid state system and has many potential applications ranging from high frequency electronics (57) to quantum computing (58). Graphene dots can be formed from external potentials or nanocrystals but this work is only concerned with external potentials. The physics of nanocrystals has been discussed recently (59) (60) and is different from the situation treated here. The quantum states, in external potentials are quasi-bound: they have a low amplitude oscillatory tail and are similar to the scattering resonances stud ied in undergraduate physics. A perpendicular magnetic field enhances the localization of these states (61) and true bound states can occur in graphene dots defined by a spatially non-un iform field (62). So a magnetic vector potential has a localizing effect that tends to cancel the delocalizing effect of a scalar potential. (a) 800 5' E - -::.";l, 550 500 450 400 dl/dVg1(nS) /[pA](b) 0 0 , ◄ 0.8 1900 1880 >E - 1860 >~ 1&40 1820 300 400 500 600 1380 1400 1420 1440 1460 1480 V91 [mV] V91 [mV] Figure 4. (a) Color scale plot of the transconductance. (b) One of the vertices of the honeycomb structure at Vsd = 800 1,1V: Charge stability diagrams for series-coupled quantum dots. UNCLASSIFIED/ /POft. orr1e1s11t l::181: 8,.LY 16

UNCLASSIFIED/ /FOR. OFFI@IAI: l48E OHi:¥ Graphene Disc in Bilayer Graphene Bilayer graphene is the two-layer analog of the single layer. The two sublattices are coupled by the so-called Bernal stacking. A voltage V between the two layers breaks inversion symmetry (like the mass term ti in the single layer) and opens a gap proportional to the voltage. In addition, the combination of a top gate and a back gate allows tuning the gap and the average potential U(r) independently. A central issue, from a computational electronics perspective, is to quantitatively study the condensed state. In materials-based device models, one has an underlying Hamiltonian, such as an ab initio Hamilton ian .m In principle, the excitonic condensate emerges from the interacting particles described by the Hamiltonian. It is shown that both true bound states and quasi-bound states occur, depending on the form of the potentials. In addition, there is a third and most interesting possibility where the character of the states depends on the parameters of the potentials and can be controlled at will. A confinement-de-confinement transition then occurs in which the character of the states changes from oscillatory to exponential as in the Klein paradox for particles with mass. This gives a way of probing the Klein paradox experimentally in a solid state system and numerical studies of the quantum states in a realistic dot model show it is feasible. Further, the same effect could be used to fabricate a graphene dot which has true bound states. This only requires a uniform magnetic field and a gate which can be made lithographically, a geometry that is much easier to fabr icate than the non-uniform magnetic field geometry. The relativ istic nature of the transmission, exactly 100%, does not depend on E and Vo is a consequence of the zero mass. If the particles had mass mo, the energy-momentum relation would be (E - V)2 - p2c2 = mo2c4 and the amplitudes of the wave function components in equat ions of mot ion would depend on k or k' and mo. Then the right side amplitude in equations would be different from the left side amplitude, so a reflected wave would have to be introduced to satisfy the boundary condit ion at x = 0 and the transmission coefficient would not be 100%. bilayer aph · ne op gat f + + + + + + + + Figure 5. Quantum dot in bilayer graphene . m Ab initi o Hamiltonian is one derived from first principles. UNCLASSIFIED/ ;'FOR. 8FFl@IAL U9I!! eHt I 17

UNCLASSIFIED//FOR OFFICIAL USE ONLY Figure 6. Bilayer graphene tunneling device structure. Two sheets of graphene are separated by a one-nanometer thick insulating of graphene. Manipulation of Spin Qubits in Graphene Quantum Dots Relative to GaAs For universal quantum computing, single-qubit and two-qubit manipulations are necessary. Single-qubit rotations of spin qubits are naturally done by electron spin resonance (ESR) (63) and by electric- dipole- induced spin resonance (EDSR) (64). The Rabi frequency faabl at which the qubit rotates, for instance, in the ESR experiment (65) is proportional to the electron spin g-factor, faabi = gµsBac/2h where µs is the Bohr magneton and Bae the external oscillating magnetic field used to rotate the spin. Notably, the electron spin g-factor differs for different materials . In GaAs quantum dots, it has been measured to be lg I < 0.43 (66) whereas, in graphene quantum dots, it has been determined to be close to lg I = 2. (67) Thus, it is possible to rotate the electron spin in graphene quantum dots using ESR about five times faster than in GaAs quantum dots using the same field strength of the external oscillating magnetic field. This is an important gain because all qubit manipulations need to be done fast to avoid decoherence and implement fault-tolerant quantum computing (68). Another important advantage of graphene spin qubits is related to the small band gap in graphene nanor ibbons . (For a ribbon width of about 30nm, the band gap can be estimated to be of the order of 60 meV.) This fact yields additional flexibility for two-qubit operations. Two-qubit operations are usually done via the Heisenberg exchange interaction (69). The tunneling matrix element can, however, be easily tuned by increasing or decreasing the overlap of the wave functions of the electrons in the two quantum dots. In graphene or any small band gap semiconductor, this manipulation can be done in two distinct ways: either through tunneling via conduction band states (i.e., normal tunneling) or through tu nneling via valence band states (i.e., Klein tunne ling) . This has been predicted for graphene nanoribbons and experimentally realized in carbon nanotube quantum dots in (70)(71). The most important physical consequence of this additional flexibility is the appearance of a new type of long-d istance coupling between graphene spin qubits as illustrated in Figure 8. UNCLASSIFIED/ ,'FOA OFFI&il.t.L W&li 8,.LY 18

UNCLASSIFIED/ /FOR OFFICIAL USE ONLY Quantum Computing and Utilizing Organic Molecules in Automation Technology The Defense Intelligence Reference Document provides non-substantive but authori tative reference information related to intelliqence topics or methodoloqies . Prepared by: Technology Warning Division (DW0-4 ) Defense Warning Office Directorate for Analysis Defense Intelligence Agency Author: AAP Person 73 COPYRIGHT WARNING : Further dissemination of the photographs in this publication is not authorized. This product is one in a series of advanced technology reports produced in FY 2010 under the Defense Intelligence Agency, Defense Warning Office's Advanced Aerospace Weapon System Applications \AAWSA) Program. Comments or questions pertaining to this document should be addressed to AAP Person 1 lAAWSA Program Manager, Defense Intelligence Agency, ATTN: JUIAF - DI/DWO-3, Bldg 6000, Washington, DC 20340-5100. UNCLASSIFIED/ /FOR AlililGII.L W&lii &PtLY 1

UNCLASSIFIED/ /FOA QFFIEJIAL YSI!!! 9Ht'I" By means of Klein tunneling, two distant qubits can be strongly coupled without touching the states of intermediate qubits that might be located between the two. Thus, a ribbon of graphene hosting many spin qubits in a line can be viewed as a qubit piano where any two of them can be entangled with leaving the states of the others unchanged; see Figure 7. Interestingly, this feature, i.e., the availability of non-local interactions, is important for quantum error correction since it raises the threshold for fault-tolerant quantum comput ing (72). Figure 7. Qubit piano . Illustration of many spin qubits in a line hosted within a graphene nanoribbon. Quantum dots are red bars and barrier regions are blue bars. Different spin qubits that are strongly coupled to each other via Klein tunneling are marked with the same color. Figure 8. Long distance coupling of three graphene qubits. Spin Relaxation and De-phasing in Graphene Quantum Dots Why can we expect stable spin qubits in graphene quantum dots? There is hope that spin relaxation and dephasing will be very weak in graphene for the following reasons: (i) Carbon UNCLASSIFIED//EAR OFFICIO I. flii 0Plk¥ 19

UNCLASSIFIED/ /FOR: OPPIClltt U.!I! Oflt I is a light element with atomic number 6. Hence, its atomic spin-orbit interaction is weak as compared to heavier elements. However, such a statement should be taken with care because, in the solid state, spin-orbit coupling is oftentimes dominated by bulk inversion or structure inversion asymmetry. Therefore, crystal structures of light elements can (under certain circumstances) exhibit rather strong spin-orbit coupling. Prime examples are carbon nanotubes where theory predicted a substantial spin-orbit coupling (a few hundred µeV) due to the curvature of the tube (73) (74 )(75) which has been nicely confirmed in recent transport experiments on carbon nanotube quantum dots (76). Since the surface of graphene is less curved than that of carbon nanotubes, the spin-orbit coupling in graphene - due to ripples - should still be rather weak (roughly ten times less than the spin-orbit coupling due to curvature in carbon nanotubes (77)). (ii) Carbon has two stable isotopes: 12C and 13C. The natural abundance is 99% 12C and 1 % 13C. Since 12C has nuclear-spin O and 13C has nuclear-spin 1/2, the electron spin of the qubit can only interact with 1 % of the nuclei via hyperfine interaction. This ratio can even be further decreased because it is possible to artificially make 12C-enriched graphene. Spin Relaxation Due to Spin-orbit Interaction The spin-orbit coupling arises from the band structure and is enhanced by ripples in the graphene sheet. The orbital motion is influenced by scattering centers and ripple-induced gauge fields. Spin relaxation due to Elliot-Yafet and Dyakonov-Perel mechanisms and gauge fields in combination with spin-orbit coupling are discussed. In intrinsic graphene, the Dyakonov-Perel mechanism and spin flip due to gauge fields dominate and the spin-fl ip relaxation time is inversely proportional to the elastic scattering time. The spin-relaxation anisotropy depends on an intricate competition between these mechanisms. As Pauli noted, when an electron is in a quantum state it can simultaneously be partially in the spin up state and partially in the spin down state. During this phenomenon known as "superposition states" an electron can exist in a free spin cycle oscillating between the up and down states. A qubit based on the spin of an electron could have nearly limitless potential because it is neither strictly on or off. Recently, researchers at Princeton University discovered how to manipulate a single electron without disrupting any surrounding electrons (78) . By utilizing an interferometer technique where one or two electrons are trapped in microscopic corrals that are created by applying voltage to miniscule electrodes, "spin qubits" were formed. This effort is ground-breaking in that previous research utilized techniques where the electrons were exposed to microwave radiation. The previous method was ineffective to manipulate individual spin qubits because the microwave was incapable of isolating to only a single electron. Whereas commonly used single-spin rotation mechanisms rely on gigahertz frequency magnetic fields, the coherent rotations between S and T+ demonstrated here occur on a nanosecond time scale set by the Zeeman energy and are solely driven with local gate-voltage pulses. As a result, it will be feasible to scale this quantum control method to a large number of spin qubits operating in close proximity. In addition, it is possible that the spin-flip mechanism employed here, which relies on coupling to the nuclear-spin bath, could be harnessed under the appropriate conditions to create a nuclear-spin memory (79). UNCLASSIFIED/ /fdk OFFICIAL U.!I! OHL¥ 20

UNCLASSIFIED/ /FOR: 8Pfl@IAL YSli &Pn,¥ Research with Graphene Quantum Dots Graphene is an ideal candidate for spin qubits due to its low intrinsic spin-orbit coupling and the sparse amount of nuclear spins. We discussed bound states in gate-tunable graphene quantum dots realized in both graphene nanoribbons and gapped single -layer and bilayer graphene. In contrast to quantum dots realized in edged graphene flakes, gate-tunable quantum dots are defined electrostatically rather than by the physical edge of a graphene sample . This allows one to controllably break the valley degeneracy, a prerequisite for spin­ based quantum computing, e.g., by using a magnetic field. We have also discussed quantum manipulation of spin qubits in such dots, as well as recent theoretical studies on the consequences of spin-orbit interaction and hyperfine interaction with nuclei for spin­ relaxation and spin-decoherence . Both theoret ical and exper imental efforts have focused on single-layer graphene quantum dots. The next major area is likely to be bilayer graphene. Bilayer graphene is potentially superior to single-layer graphene due to the creation of a tunable bandgap by electric fields which allows for an all electrical control of graphene quantum dots . These new capabilities may be a boon for spintron ic quantum information processing. Single-qubit gates, based on single-spin electron spin resonance, have achieved significant breakthroughs. Fast ( ~200 ps) two-qubit operation has been demonstrated, but single-qubit operations on a similar time scale still remain a challenge. A proposed new configuration of two-spin encoding of the qubit, where a sing le and a triplet state play the role of the 0 and 1, shows promise. With this type of qubit, the interferometer, demonstrated by the Princeton researchers, could be used for single-qubit gates on a nanosecond time scale. Alternat ively, fast qubit rotations in a slightly different singlet-triplet qubit can be obta ined by align ing nuclear spins to create different nuclear polarizations in the two dots. Fast single -qubit and two-qubit gates available in the same system allow for efficient quant um error correction and could provide an important head start in the battle against decoherence. However, no two­ qubit gates for this type of qubit, which would involve four spins, have yet been demonstrated. Utilizing graphene as a structural basis for quantum computing, coupled with other carbon based materials such as self-assembling DNA, motifs, may lead the revolut ionary development in quantum computing. SUMMARY OF ADDITIONAL INORGANIC TECHNOLOGIES The advancement of quantum computing schemes is the subject of significant investment and development over the past two decades. Recently, Ladd reviewed inorganic techno logies. (5) Ladd proposes that ion traps are the most probable technology based on their long T2, but then concludes that a comparison between the technologies is incomplete without further development on all fron ts. The current treatise concentrates on organic technology but summar izes here the work of Ladd and others for completeness. Photon Technologies Using the polarization state of a photon is an appealing approach to store, communicate, and manipulate qubits. Photons do not require a vacuum or very low tempe rature for fairly good isolation from thermodynamic interactions. They do require special, non-linear media for robust, reliably predictable manipu lation. A major advance in 2001, known as the KLM scheme, showed that a scalable quantum comput ing was possible using linear optics and single-photon detectors and sources. (80) The major hurd le, according to Ladd, is photon UNCLASSIFIED/ /EAR OEEICIOI IPiii QNLlf 21

UNCLASSIFIED/ /FOA OFFIEIAk W&lii 0NLY loss within waveguides, and is equivalent to decoherence time in other quantum hardware. n The size of quantum gates is currently on the order of cm; this hurdle becomes less as gate size decreases. It is finally concluded that photons will likely be used in a hybrid technology with another quantum element serving as the basis for gates and other interact ions. This scheme is known as distributed quantum computing, where elements can be separated by significant distance. This distance is either large by comparison with gate or gate array size, or actually large (km) in a communications network. Photonic technologies are a very active development area: the raw number of publications found for "photon computers" or "photon comput ing" shows more entries for 2009 than for 2008 and 2007 combined.° Furthermore, many devices operate at or near room temperature and most do not require expensive cryogenic systems (temperature below He boiling point), making them inexpensive to research versus other technologies. These objective measures make breakthroughs more likely, and in 10 years all-optical computing should be addressing problems that cannot be accomplished via classical systems. In 40 years, manufacturing engineering will decrease the cost of these devices and they will be an option for many computing tasks in the space environment. Ion and Atomic Trap Technologies Individual atomic ions can be trapped in free space by nanoscale electrodes, while atoms can be trapped in an optical lattice created by lasers. In the ion systems, manipulation of electrode voltages move ions around the lattice and interact them with each other. In atomic systems, modulation of the optical lattice and/or external optical interference is used to manipulate the atoms. Ladd concludes that scaling is the primary hurdle in trap-based technologies. More detail of such hurdles in trap technologies is revealed in a year earlier (much longer) review by Haffner. (81) Ion-trap-based gate operations are shown to have arbitrar ily high fidelity, or higher fidelity than required for fault-tolerant computation. The current bottleneck in trap technology versus classical systems is the trapping frequency of a few hundred microseconds, even though massive parallel operations are possible. Haffner concludes that there are no fundamental barriers to scaling trap-based computing, but the technology is challeng ing and will progress as evolution rather than revolution. This is encouraging given that 40 years ago 20-nm transistors seemed challenging, but without fundamental operational barriers. Nuclear Magnetic Resonance (NMR) Technologies NMR storage and manipulation has been shown in liquid media up to a dozen qubits. Liquids are preferred because of their longer T2. However, thermal motion in the liquid state made scalability an issue. Moving to solid state NMR to address thermodynamic issues dramat ically decreases T2. Ladd concludes that NMR technologies are a good testing ground for fault­ tolerant algorithm development, but of little practical use for quantum computing. Superconducting Technologies Superconductivity is the flow of electric ity without resistive losses. Similar to the laser, this macroscopic phenomenon has quantum mechanical origins. When cooled below a critical n A waveguide is the equivalent "wire" that isolates the transmission of photons between interaction and storage devices. 0 Web of Science database, Inquired 30 June 2010 . 22 UNCLASSIFIED//FOR OFFIClftt tJ.!I!!! 8HLY

UNCLASSIFIED/ /EOA QFFl&Il.l l::181: 8HtY temperature, some materials such as copper form a lattice that allows electrons to pair and flow as a bosonic charged (2e) particle. The components of superconducting circuits can be fabricated with current technology; however, decoherence times are limited to several microseconds maximum due to the large size (100 micrometers) of the circuit elements and thus large number of charge carriers in a qubit device (~10 10 ). Additionally, the current qubit device designs only operate at the scale of l0's of mK. Superconducting elements, specifically Josephson junctions, may play a role in hybrid designs such as the distributed ion traps of Haffner (81), but are currently not seen as a stand-alone technology for quantum computation. DNA-BASED DESIGNS FOR MOLECULAR COMPUTERS While traditional silicon-based circuits reach their fundamental atomic limitation, researchers search for alternative mediums for computation. The most logical solution to overcome this restriction in silicon-based integrated circuit architectures resides within our own bodies, deoxyribonucleic acid (DNA). Living organisms also carry out complex physical processes under the direction of digital information. Biochemical reactions and ultimately an entire organism's operation are ruled by instruc tions stored in its genome, encoded in sequences of nucleic acids. When the workings of bimolecular machines inside cells that process DNA and RNA are compared to Turing's machine, striking similarities emerge: both systems process information stored in a string of symbols taken from a fixed alphabet, and both operate by moving step by step along those strings, modifying or adding symbols according to a given set of rules. Set strand 'Open' 'Closed' r Unset strand Figure 9. A DNA nanomachine driven by repeated sequential addition of DNA control strands (82). DNA Background Watson and Crick may have never realized the full potential of the double helical structure they identified nearly 60 years ago, (83) for little was known about this amazing molecule that harnesses life. Biochemists in the late nineteenth century had found that these nucleic acids, long-chain polymers of nucleotides, were made up of sugar, phosphoric acid, and UNCLASSIFIED/ /FQA QFFIEIAk Wlii QNk¥ 23

UNCLASSIFIED/ /FAQ OFFI&ilAl YSIE 8HtY several nitrogen-containing bases consisting of deoxyribonucleic acid (DNA). By the late 1940s the scientific community widely accepted DNA as the carrier of genetic information. But, it wasn't until 1977 that Fred Sanger developed the first dideoxynucleotide chain termination bottom up assembly method for DNA. (84) This technique would later usher in a new age of nucleic acid research and open the door for the modern era of biotechnology. With the advent of the Polymerase Chain Reaction (PCR) (85) technology a virtual treasure trove of capabilities now exist for genetic and biochemical engineers to create customized DNA strands. This revolutionary process has created a multidisciplinary field of work within nanotechnology that intersects at the crossroads of computer science, biochemistry, material science, and engineering. This section on DNA-based nanosystems and computing will introduce several state of the art research applications and concepts currently being employed to produce DNA-based devices. It is crucial to formulate a basic understanding of the structure and chemical principles of the DNA molecule to fully grasp its potential as a building material for DNA-based nanosytems. For the lay reader we have constructed a simplistic outline to illustrate the general principles of the DNA molecule that hold true to their biochemical properties as they apply to bottom­ up nanostructure assemblies. 1. DNA consists of two long polymers made of simple units called nucleotides, with backbones made of sugars and phosphate groups joined by ester bonds. These two strands run in opposite directions to each other and are therefore anti-parallel. The double strands of DNA form a double helical structure. 2. The information in DNA is stored as a code made up of four chemical bases: adenine (A), guanine (G), cytosine (C), and thymine (T). The order, or sequence, of these bases determines the information available for building and maintaining an organism. These nucleotides bind through a chemical bonding process known as Watson and Crick base pairing . A bonds with T, and G bonds with C - a given sequence of such nucleotides will always bond with the complementary sequence.P 3. In its double helical configuration, DNA is a relatively rigid molecule. This rigidity can be further enhanced by bundling several double helixes to form DNA lattices and tiles to form synthesized nanoarchitechtures (87)(88)(89). 4. The Watson and Crick base-pairing principles have created predictable binding affinities in bench top applications. This knowledge of the intra- and inter-molecular physical properties of the DNA molecule enable the programming of desired interactions within the sequences to produce a customized sequence of DNA. 5. The ease in sequencing DNA based on the Sanger technique, which today has evolved into advanced automated processes, have made designer DNA strands readily available. Customized strand lengths or oligonucleotides (strands typically 100-200 base pairs long) can be easily ordered from various sequencing services or produced within the lab at relatively low costs with high throughput and quality. 6. Today biotechnologists can employ a library of unique restriction enzymes that can cut the DNA strand between specific nucleotides leaving "sticky ends", or single stranded P Sometimes transcription errors will result in an incorrect bond, such as A with G. These are single nucleotide polymorph isms, or SNPs (pronounced "snips"). SNPs are not uncommon in the human genome and have important implications in disease; however, in the current treatise we consider such "wrong" pairings to be errors that need correction . UNCLASSIFIED/ /FOR: orr1e11tt U:!E OHt I 24

UNCLASSIFIED//FOR OFFICIAL 09~ l>flti overhangs at the end of the double helix (Figure 10). These fragments can be exploited to create a recombinant molecule of DNA by; a. Inserting or removing a specific sequence of DNA. b. Attaching a fluorescent molecular beacon. c. Amplifying the sequence through the PCR process. 5,• ~----G A_A_T_T_C___--<1 3s•'3Original DNA _ CT TA A G _ molecules 5' GAATTC 3' CTTAAG 5'3• l ve DNAI from IWO, urc s3: ~---=GI_~ . C TTAAI O o vVtth s.arru'!' ·~trh t1on enzyme ~ £ ,fragmemsand~llow ¥7ic~y-end, to Join by base patnng I E) Incubate w,th DNA log.1se +10 t,nk each wand covo! ntly Recombinant DNA molecule Figure 10. Recombinant DNA molecule with restriction enzyme cleavage and sticky end ligation. 7. By carefully using the recombinant tools and technologies available to genetic engineers, one can properly program a customized Watson-Crick base-paired DNA motif that will self-assemble in solution. This method of self assembly is preferred on small scale applications due to the difficulties experienced when assembling nanoscale objects through the traditional top down method. Assembly of DNA motifs with t he aid of various branched DNA strands with sticky ends can be directed by the geometry and connectivity of the varying motifs. Once the structure is assembled a range of DNA latt ices can be produced (Figure 11) . UNCLASSIFIED/ /FOR OFFI&I.t.k W&E 8Nk\f 25

UNCLASSIFIED/ /FOR: orr1e1At l:ISI!! e .. tv Figure 11. Two symmetric DNA nanomotifs and the crystals grown using them. {a) and {d) show a symmetric cross motif and a three-point-star motif, respectively. Images {b) and {e) are atomic force micrographs showing the crystal structure, and (c) and (f) are fluorescence microscopy images of DNA 2D crystals assembled from the DNA motifs {86). 8. Another widely accepted bottom up method to construct DNA nanosystems is through a process known as strand displacement or branched migration . This assembly method displaces one DNA strand and selectively replaces it with a strong complementary strand which usually consists of more Watson Crick base pairs. This method can be utilized to correct sequence errors made during strand synthesis and DNA tile assembly and in complex logic gates, and for controll ing DNA motors. In 1996, Winfree devised a theoretical proposal that addressed how crystal morphology and patterning can be programmed by tile design in an inherently asynchronous assembly process, in which it was addressed by the abstract Tile Assembly Model (aTAM) . (90) Winfree explored how physical parameters, such as tile concentration and temperature, affect crystal growth and influence error rates, based on reversible tile associat ion and dissociation rates (91). This work was built on previous efforts by Wang 's (92)(93) embedding of computation in geometrical tiles showing that two-dimens ional (20) self-assembly of DNA can perform Turing-universal computation. This implies that any algorithm can in princip le be embedded in, and guide, a potentially aperiodic crystallization process. In this "algorithmic self­ assembly" paradigm, a set of molecu lar "Wang tiles" is viewed as the program for a particular computation or molecular fabrication task. Later collaboration between Winfree and Seeman resulted in the first successful fabrication of a two-dimensional DNA lattice structure that util ized the mathemat ical principle of tiling (94) . The self named DX (double crossover) molecule has two double helical motifs that are rigidly bound together by several single strands that are organized in a double crossover pattern forming a rigid structure of DNA. These DNA strands are oriented in a parallel direction. This method allows for the production of DNA based lattices by exploiting the use of sticky ends at four ends. These ends can then be further constructed to build up a scaffold of DNA based on UNCLASSIFIED/ ,{FOR OFFICIO .. Uii 8PtLY 26

UNCLASSIFIED/ }Fdk OFFICIAL U.!r:: BHL\I Contents Summary ........................................................................................................................ 5 Introduction ................................................................................................................... 7 Ultrafast Computing Power in Aerospace Applications ................................................... 7 Making Digital Circuits Faster ..................................................................................... 8 Applications of Quantum Computers ........................................................................ 10 The Closed Box and Fault Tolerance ......................................................................... 11 Scalability ................................................................................................................ 12 Universal Logic ......................................................................................................... 12 Initialization and Measurement ................................................................................ 13 The Quantum Dot Approach ................................................................................. 13 Electrostatic Quantum Dots in Graphene .............................................................. 14 Quantum Dots in Graphene Nanoribbons ............................................................. 15 Graphene Disc in Single-Layer Graphene ............................................................. 16 Graphene Disc in Bilayer Graphene ...................................................................... 17 Manipulation of Spin Qubits in Graphene Quantum Dots Relative to GaAs ........... 18 Spin Relaxation and De-phasing in Graphene Quantum Dots ............................... 19 Spin Relaxation Due to Spin-orbit Interaction ...................................................... 20 Research with Graphene Quantum Dots ............................................................... 21 Summary of Additional Inorganic Technologies ....................................................... 21 Photon Technologies ............................................................................................ 21 Ion and Atomic Trap Technologies ....................................................................... 22 Nuclear Magnetic Resonance (NMR) Technologies ............................................... 22 Superconducting Technologies ............................................................................. 22 DNA-based Designs for Molecular Computers ........................................................... 23 DNA Background .................................................................................................. 23 Error Suppression Mechanisms in DNA Self-Assembly .......................................... 28 Self-assembly with DNA-based Microfluidic Devices ............................................ 31 DNA Origami ........................................................................................................ 32 Engineering DNA-Based Logic Gates .................................................................... 35 Logic Operation by Deoxyribozymes .................................................................... 35 UNCLASSIFIED/ /FAR 055iliCl.\k W&E 8HLY 2

UNCLASSIFIED/ /P91t 9PPl@IAL l:ISIE 8HLY Deoxyribozyme-based Boolean Automata ............................................................ 39 Robotic Bases (The DNA Robot) ........................................................................... 40 DNA Nanomotors .................................................................................................. 41 The Nano Walker; a Spider-like Approach ............................................................ 43 Discussion ................................................................................................................ 45 Conclusion ................................................................................................................ 46 References ................................................................................................................ 48 Figures Figure 1. Hexagonal structure of graphene ..................................................................... 14 Figure 2. Quantum dot in graphene nanoribbon .............................................................. 15 Figure 3. Left; Energy diagram for quantum dot in single-layer graphene. Right; Bound state levels as function of dot radius ............................................................. 16 Figure 4. (a) Color scale plot of the transconductance. (b) One of the vertices of the honeycomb structure at Vsd = 800 µV: Charge stability diagrams for series- coupled quantum dots ...................................................................................... 16 Figure 5. Quantum dot in bilayer graphene ..................................................................... 17 Figure 6. Bilayer graphene tunneling device structure ................................................. 18 Figure 7. Qubit piano ........................................................................................................ 19 Figure 8. Long distance coupling of three graphene qubits ............................................ 19 Figure 9. A DNA nanomachine driven by repeated sequential addition of DNA control strands .............................................................................................................. 23 Figure 10. Recombinant DNA molecule with restriction enzyme cleavage and sticky end ligation ....................................................................................................... 25 Figure 11. Two symmetric DNA nanomotifs and the crystals grown using them .......... 26 Figure 12. (top a-e) The XOR Cellular Automaton and Its Implementation by Tile-Based Self-Assembly ............................................................................................. 27 Figure 12 (continued). (bottom a-e) AFM Images of Algorithmic Self-assembly of Sierpinski Triangle Crystals ........................................................................... 28 Figure 14. Simulation results of growth in (A} the OTM, (B) the PTM, and (C} the LTM.30 Figure 15. Three Types of Error in DNA Tile Self-assembly (a) Growth error (b) Facet Figure 13. Error Suppression with the PTM Method ........................................................ 30 error (c) Nucleation error. Red lines indicate the mismatched sides .......... 31 Figure 16. Micro-fluidic device for DNA tile self-assembly ............................................ 32 Figure 17. (A) Schematic diagram of a 16-column microfluidic DNA synthesizer (B) Close up schematic of the column array ............................................... 33 Figure 18. Design of DNA origami ................................................................................ 34 Figure 19. Several DNA origami folding paths .............................................................. 34 Figure 20. Functional design of a DNA based logic gate ............................................... 37 Figure 21. Simplistic rendering of a DNA logic gate ...................................................... 38 Figure 22. Basic gate structures, derived from allosterically regulated deoxyribozyme E6, for playing tic-tac-toe against a human opponent ................................ 39 Figure 23. First Generation (MAYA I) DNA-based Logic Circuit that plays tic-tac-toe ... 40 Figure 24. A single molecule DNA-based nanomotor driven by photons ....................... 42 Figure 25. AFM Scan of walkers as they follow a track pattern places on the surface .. 43 UNCLASSIFIED/ /EAR OEEICI Pk Wlili BHLY 3

UNCLASSIFIED/ /FOR: 8ffl@IAL U.!I! 014Li Figure 26. The Nano walker made at Columbia University is a protein molecule decorated with three legs--single-stranded DNAzymes, synthetic DNA molecules that act as enzymes and catalyze a reaction ............................. 44 Figure 27. Deoxyribozyme-based molecular walker and origami prescriptive landscape . ..................................................................................................................................... 45 UNCLASSIFIED/ /FOR AliliiliCIAk W&i 9PU::J.f 4

UNCLASSIFIED/ /FOR. 8FFI@IAL l!ISI!!! er~t I Quantum Computing and Utilizing Organic Molecules in Automation Technology Summary Powerful onboard computing hardware is a desired option for future space travel. Without large data processing capability, the copious amounts of data acquired during flight from astronomical sensors as well as crew and vehicle sensors will need to be sent back to earthbound machines for processing, introducing delays measured in hours for routine calculations. Current commercial computer hardware trajectories in silicon substrate semiconductors are not likely to produce a radiation-hard or small and portable supercomputer without significant mission-specific alteration. Alternatives to traditional computing technology include computers based on entangled quantum states and molecular computing hardware based on DNA molecules. Included in th is review is significant introduction to the necessary elements of quantum computing and a summary of the state-of-the-art technologies. Following is background on DNA and production of engineered DNA chains. Finally, DNA logic gates are presented along with a treatment of nanomachines that will repair DNA circuitry. Forecasts of technology development in the 10-20 and 40-year horizons are included along the way, as well as summary discussion and a conclusion. The first operating quantum computers capable of solving real-world problems will commence within 10 years and be based on ion trap technology. This is entirely based on the amount of research resources dedicated to the problem and the fact that there appear to only be engineering challenges remaining. Atomic and ion traps require very substantial cryogenic and EM shielding systems and are not practical for space travel. Pure photonic technologies available today have difficulty with both miniaturization and scalability. However, the amount of active work in the field makes a disruptive advance likely in the 10-year timeframe . Optical computers will likely be realized in the 20-year horizon; however, the very powerful promise of quantum computing will still have issues with photon loss in any solid state device. The 40-year horizon will see photon technologies play an essential but supporting role in distributed quantum computing. Realized all-optical non­ quantum systems will have radiation tolerance advantages over current semiconductor technology and are likely to augment or even replace general -purpose computing devices for space trave l. Hybrid designs uti lizing arrays of quantum dots and photon communication channels will be an option for space travel supercomputing on the 40-year timescale. These systems operate at attainable temperatures without cryonics, and require no more shielding than humans. It is likely that spintronics will be an essential ingre dient. Simple organic computing based on DNA tiles will be realized in the next 20 years. On the 40-year time horizon, useful DNA-based devices will be essential space exploration tools. These could take the form of orbital-del ivered wireless sensors searching planetary/asteroid features or for essential compounds such as high concentrations of water. DNA computers will also be realized on the 40-year timeline . Their advantage over solid state devices will be the ability to repair nanoscale elements damaged in normal use or by cosmic radiation. UNCLASSIFIED/ j FOR OFFICIAL 031!!! l>flt I 5

UNCLASSIFIED/ /FAQ OFFI€i1Al 1481: 8Ht'I" These will not be the fastest systems in the astro-arsenal, but self-repair may make them the most robust. UNCLASSIFIED//FOR OPPICil<t U:!I!! 8HLY 6

UNCLASSIFIED//P91t 9PPl@IAL l!ISI!!! 9HL'I INTRODUCTION Computers today are not what they used to be. In the 17th century, a computer was merely a person who performs computations. In this sense, the first computers were universally programmable and were ultimately utilizing organic (DNA) hardware architecture. The modern sense of a computer as a machine that manipulates input to produce deterministic output emerged from the work of Turing in the 1930s. A Turing machine consists of four parts: tape containing cells of symbols, read head, action table, and state register. In operation, the state register is initialized, the first cell of the tape is read by the head, the table translates the symbol into an action in the state register, and the tape is advanced to read the next symbol. The read, action, advance tape loop is repeated until the program ends.(1) Any calculation a modern digital computer can perform can be accomplished using a Turing machine .a Modern digital processing hardware, first used in the ENIAC in the 1950s, is based on logic gates. All functions of a computer consist of the basic logic elements AND, OR, NOT, etc. These are accomplished electronically by producing logic gates, combinations of transistors that perform the logic function on input data. A common exercise in didactic digital logic pedagogy is to design all of the basic logic gates using only NANO or NOR gates; thus, any hardware element that can execute the NAND function can build a complete computer.b Optimum designs are regularly more elegant than combining a single two-input gate, but it is sufficient as proof of principle for any architecture to be able to produce an inverter and a simple logic gate (AND/OR). The quest for faster computing can be accomplished by making current hardware architecture faster, or by designing new hardware based on different architecture that solves the calculation in fewer steps. The current treatise concentrates on the latter, dramatically changing the architecture of modern computers to perform calculations in a different manner. Two methods are explored: that of creating logic gates, and that of creating a general Turing machine. The second of these is explored in the context of quantum computing with an emphasis on organ ic molecules as a core technology. Designs of logic gates utilizing DNA are covered. Background on all these areas of research is included first. Finally, DNA machines that can assemble and repair DNA technology are outlined. ULTRAFAST COMPUTING POWER IN AEROSPACE APPLICATIONS The history of manned spaceflight does not include powerful computers as integrated companions; space-borne supercomputers have so far been reserved to the world of science fiction. The main issue on space stations has been radiation hardness, while the main issue on vehicles such as the space shuttle has been safety. The amount of testing required for a microprocessor to be certified for space precludes the most current technology from becoming astro-worthy. Indeed, the most powerful general purpose computers riding in the shuttle are the laptops the astronauts bring with them. • The complete history of computers up unt il the 1950s is a fascinating story. A good summary of this history is available in the Wikipedia entries for "computer " and "Turing machine " among other places. The mode l of a Turing machine presented is simplified . b The didactic exercise is usually followed by a laboratory exercise on breadboards and measurement of the truth table . NAND gates are popular because they are particularly simple to manufactu re with current technology . UNCLASSIFIED/ lfQB OFFICIO! I !Si OPIL¥ 7

UNCLASSIFIED//POR: OPPICIAL USE OIILI The first challenge to overcome in supercomputing in space is radiation causing temporary and permanent errors in calculation. The current approach is to make the solid state components radiation-hard, a time-consuming and costly process. An alternate approach is to use multiple commercial-off-the-shelf (COTS) components in parallel architecture. George's group at the University of Florida pursued this approach with earthbound success. (2, 3) A good question arises that if 50 years of space travel hasn't required one onboard supercomputer, why start now? It seems NASA asked this question as well and, after years of preparation, cancelled the space test of the technology in late 2009. Regardless of the need for current missions, one can imagine many future applications where it would be more convenient to data process on long space missions without downloading data to Earth-based system and uploading the results. This is especially true for long­ duration spaceflight where communication delays could be minutes to hours (Mars ~13 minutes, Jupiter ~45 minutes, and Neptune ~4 hours). Spacecraft active in the 40-year horizon will require supercomput ing technology on-board to process all of the data to be acquired during flight. This includes astronomical data as well as ship and crew data. c Example missions include Mars with a goal to analyze the planet using thousands of semi­ autonomous sensors or millions of independent, wirelessly communicating nanomachines ("magic dust"). In such scenarios, it is not necessarily numbers that need lots of crunching, but algorithms that need to be run on powerful systems that could be non-traditional in their design; for example, massively parallel. MAKING DIGITAL CIRCUITS FASTER In consideration of the underlying physics in the electrodynamics of transistor operation, the scale of the constituent elements dominates the type of analyses required. In the macroscopic regime, constituents are measured in microns or larger, properties are dominated by well-defined statistical averages in bulk matter, and non-classical effects due to the underlying fact that all particles involved in the interact ions are really fluctuations within a relativistic quantum field can safely be ignored. For 40 years making a fast transistor was primarily accomplished by avoiding saturation between states in an arrangement known as emitter coupled logic (ECL, pronounced "ek-el"). The ECL family of logic circuits could achieve sub-nanosecond switching times and dominated the leading-edge of high-speed computing up until the early 1990s. The drawback of ECL was that without reaching saturation, no depletion zone existed within the individual transistors and thus current flowed through much of the device hardware instead of the usual small leakage current associated with gates in a defined state. ECL's large current flow makes cooling and power requirements challenging, especially for space-based platforms where heat dissipation is an issue. Saturation technologies, primarily MOSFET-based, surpassed the speed of high-current devices when the footprint of individual elements became small enough that a change between depletion states could be quickly stabilized, given the comparably slow drift velocities of primary charge carriers. These CMOS-family technology devices are the current state-of-the-art in integrated circuits, and device speed increases, until recently, were dominated by making the circuit elements smaller (see below). Intel produces high volume !Cs with circuit elements size at 32 nm, and has demonstrated memory elements in 22 nm c The scenario of several massive data acquisition channels was presented at the Workshop for Technology Breakthroughs for Human Space Exploration , June 17th 2010, NASA Headquarters , Washington DC. Navigation is and will continue to be handled by traditional computing machines - it is only rocket science that needs to be solved for navigation purposes. UNCLASSIFIED/ /FOA OFFICil.t.k W&E 8HL1/ 8

UNCLASSIFIED/ /FOR OFFICIAL 031! BHLY the complementary binding of the Watson-Crick base pairs that correspond to each sticky end. In this way, a lattice structure can be built upon the base structure by synthesizing additional DX motifs to construct what is known as a "DNA tile." These tiles can be further utilized as a scaffold for additional molecular structures. In order to envision the aTAM tiling process, it is easy to picture various tiles with different numbers written on the sides, indicat ing matching rules where two tiles would stick only if their contacts matched. Additional matching interactions can be arranged in a manner that adjacent tiles can strongly hold the next one in place, but a single interaction creates a weak bond. Figure 12 illust rates an instant iation of the algorithmic self assembly process, in which sets of four species tiles that represents XOR ( exclusive OR) function to create a Sierpinski triangle pattern. The so called seed structure is used to input the initial values that commence the algorithmic self assembly process. However, it must be noted that random nucleat ion events may occur. Nevertheless, algorithmic self-assembly has created a means to emulate cellular automata. A l = 2 : I = 0 : z = xEBy output - z z ~ ~ ~ inputs - x y D * E - - - y .... ..... ........ ~-~ --- --·-- - Figure 12. (top a-e) The XOR Cellular Automaton and Its Implementation by Tile -Ba sed Self-Assembly . (bottom a-e) AFM Images of Algorithmic Self-assembly of Sierpinski Triangle Crystals. UNCLASSIFIED/ /FOA QFFl&IAL Y!H! 8Ht, 27

UNCLASSIFIED/ /FOR. OFFI@IAL l!ISI!!! er~t I Figure 12 (continued). (top a-e) The XOR Cellular Automaton and Its Implementation by Tile-Based Self-Assembly. (bottom a-e) AFM Images of Algorithmic Self-assembly of Sierpinski Triangle Crystals. In theory, this process allows scientists the ability to build a computer from nanoscale material with DNA tiles (95). The experimental success of this trial demonstrated that 2D algorithm ic self-assembly offers new capabilities for computation and construction, as well as a new range of physical phenomena and exper imental challenges as well. Error Suppression Mechanisms in DNA Self -Assembly Molecular self-assembly is an emerging technology that will ultimately enable the fabricat ion of great quant ities of complex nanoscale objects such as compute r circuits at very low costs. Because the DNA-tile-based bottom-up assembly technique relies on the logic of programming self-assembly, it requires a situation where sticky-end binding specificity is infallible. Realistically, however, correctness of matching between tiles cannot be guaranteed due to the thermodynamics and kinetics of DNA tile self-assembly. This process alone results in occasional erroneous assembly steps. The number of assembly errors increases with the number of tile types, and accruing errors render large scale complex computation practically infeasible. Assembly errors can be classified into three types: 1.) Growth errors. 2.) Facet errors. 3.) Nucleation errors. Growth and facet errors are the errors that occur on the growth front of an existing assembly, while nucleation errors deal with the spurious initiation of assembl ies. A growth error occurs when a DNA tile with one or more mismatched sticky ends is embedded in the assembly. A facet error occurs on the flat surface (facet) of the aggregate when two DNA tiles attach on a growth front (facet) side by side, and thus stabilize each other's binding . This is considered an error because the identity of these tiles may not be correct with respect to the computation being performed. Nucleation errors are similar to facet errors in that a number of tiles spontaneously assemble a cluster by stabilizing each other through UNCLASSIFIED/ /POI'.. orr1e1At l!ISE Qptkl{ 28

UNCLASSIFIED/ /FOA 8FFI€iIAL ttSI!! Brit I binding. This then seeds ordinary, but meaningless computation. Growth errors, facet errors, and nucleation errors all occur because of tiles that make only weak contacts with the assembly (Figure 15). These erroneous tiles must fall off in order for correct growth to proceed. One approach is to design the lattice such that each tile is first stabil ized by the arrival of another tile before it secures itself in place. Prior analys is predicted that the error rates of tile assembly can be reduced by optim izing physical parameters such as tile concentrations and temperature. In order to suppress different types of errors, several methods have been proposed based on the idea of increasing the amount of time required to lock in erroneously assembled tiles. In order to min imize the errors, several methods have been proposed. Unfortunately, some of these methods cannot effectively suppress all types of errors. For example, the tile proof reading model first proposed by Winfree and Bekbolatov (96) can correct errors in growth if an incorrect tile attaches in the next position. This error correction technique uses redundancy to correct errors . In this method, each tile is replaced in the system with four tiles, arranged in a 2 X 2 block. The compact resilient tile model as proposed by Reif (97) attempts to reduce the increase in scale of the final pattern produced by self-assembly. While both of these methods are effective in reducing errors, they are only lim ited to those errors produced by growth. However, the error suppression models Protected Tile Mechanism (PTM) and Layered Tile Mechanism (LTM) proposed by Fujibayashi and Murata can suppress all three error types illustrated in Figure 15. (98)(99). The functional method of suppression in these models is the control of sticky end hybridization. In these mechanisms the implementation of the DNA tiles is altered by the introduction of a structural motif protection strand and protection tiles (see Figure 13 and Figure 14 ). In this technique, the protect ion strand is a single oligomer that covers the input side of the tile. Each sticky end remains uncovered and it works as the toehold for initiating a branch migration process that removes the protection strand . The combination of a tile and a protection strand is called a "protected tile," or just "tile" when it is clear from context, and "foundation tile" refers to the unprotected foundation tile. The output sides of all t iles are unprotected, thus the growth front always displays unprotected sticky ends. As seen in Figure 13 the protected tiles associate to the growth front by the exposed 3-nt sticky ends first, then branch migration results in strand displacement on each of the matching input arms; if both arms are matched, the protection strand is completely displaced, and it dissociates. In Figure 14, this method undergoes Monte Carlo simulation to evaluate its suppressive properties. Surprisingly, it was discovered that the PTM and LTM suppression methods can prevent nucleation errors as well as growth and facet errors . UNCLASSIFIED// FOR OFFICIAL ttSf 8Ptk¥ 29

UNCLASSIFIED/ /EOA QFFl&Il.l l::181!! 8HtY Outpu ~ t ~~~ u 11 if ~ lnpuis u u Xf'loolctlon slrand Figure 13. Error Suppression with the PTM Method . f' a Figure 14. Simulation results of growth in (A) the OTM, (B) the PTM, and (C) the LTM. UNCLASSIFIED// FOR OPFICIAL l::181!! 8Ptllf 30

UNCLASSIFIED/ /P91t 9PPl@IAL l:ISIE 8HLY (a) Mismatched ~ Facet c ) ~OOm ~'::eRW 1y Figure 15. Three Types of Error in DNA Tile Self-assembly (a) Growth error (b) Facet error (c) Nucleation error. Red lines indicate the mismatched sides. Self-assembly with DNA-based Microfluidic Devices Thus far we have explored DNA computing through methods based on linear DNA molecule hybrid izations (100) and "DNA tiles" with four "sticky ends"(101) . While it has been proven experimentally that DNA tiles have much stronger computational power compared to linear DNA strands (102)(103), the suppression of assembly errors is the central problem of the DNA-tile-based nanotechnology. Even though several error reduction methods have been proposed thus far, many of them only consider the design of DNA tile sets. (104) Traditionally, the result is a complicated tile set and these approaches are rarely implemented. To overcome these restraints, researchers in Tokyo devised a microfluidic device specially designed for DNA tile assembly ( 105). Traditional DNA Tile assembly methods require that all the DNA tiles are mixed in a single test tube, annealed for self-assembly, and then the mixture is dropped on a mica surface for AFM observation. Since all kinds of tiles are assembled in one pot, DNA tile sets must be very carefully designed such that each sticky end has an appropriate bonding specificity and strength to obta in desired structure. In practice, it is very diff icult to keep concentrations of each monomer tile in one-pot self-assembly. Additionally, the assembly process is strong ly affected by the concentration of the DNA tile and the temperature of the water solution. With the microfluid ic DNA tile self-assembler, a series of stepwise assembly processes are incorporated into construct ion of the tile lattice . In the microfluid ic device, pre-assembled DNA lattices are anchored on the microfluidic channel to initiate tile growth through the following steps: 1) Single-strand DNAs are immobilized on the surface of a reaction chamber. This provides scaffolds to initiate the self-assembly process, while anchoring the assembled structure against the flow. 2) Monomer DNA tiles are supplied by flow in the microchannel. A UNCLASSIFIED/ lfQR OEEICIAk WSIE 9Htt 31

UNCLASSIFIED/ /FOR OSSICIAl WSE 8Ht'I" constant concentration around the crystal can easily be realized by a constant flow. This ground-breaking work in DNA synthesis technology has opened the door for several applications in genetic engineering and lab on a chip technology (107)(108)(109). This kind of controlled self-assembly will drastically improve the size and yield of errorless nano structure. It is also possible to produce desired nano structures on a patterned template in the react ion chamber for various applicat ions. Glass plate 011 Figure 16. Micro-fluidic device for DNA tile self-assembly . DNA Origami The idea of holding helical domains in a parallel arrangement via the juxtaposition of antiparallel crossovers has become a general principle in DNA nanotechnology, used in at least a dozen constructions . For example, it has been extended to molecules with three parallel helixes (110) and it has been used to attach triangles rigidly to a nanomechanical device. (111) However, these techniques do not create a generalized multi-crossover molecule with parallel helices due to the inability to have the ratio of the component short strands exactly equal. Single -stranded origam i such as William Shih's octahedron (113) cannot, by definition, suffer from this problem. Scaffolded origami sidesteps the problem of equalizing strand ratios by allowing an excess of helpers to be used. As long as each scaffold strand gets one of each helper, all scaffolds may fold correctly (some might get trapped in misfolding). Because origami are easily differentiable from the helpers, separating them is not difficult (e.g. large origami stick much more strongly to mica surfaces than do tiny helpers and so excess helpers can be washed away). Single-stranded origami and scaffolded origami thus seem the best candidates for the creation of large complex structures. As Shih has observed, the geometry used for the octahedron should generalize and allow the creation of arbitrary polygonal networks. Generalization of the parallel helical geometry int roduced by double­ crossover molecules is simple using scaffolded DNA origami; Ruthemond has recently demonstrated the technique for the creation of six arbitrary shapes and six arbitrary patterns (inc luding the one shown here); the design method and experiments showing its generality are described in (114). To get a feeling for the method, look at Figure 18. Shapes are approximated by laying down a series of parallel helical domains inside of the shape (Figure 18a). Helices are cut to fit the shape, in a series of sequential pairs from top to bottom, so UNCLASSIFIED// FOR OPPICIJ!tt tJ!JE 8Hllf 32

UNCLASSIFIED/ /FOR OFFICIAL U.!I! 8Ht¥ that the resulting geometry approximates the shape within one DNA turn ( ~ 3.6 nm) in the x-direction and two helical widths(~ 6 nm, including an inter-helix gap) in they-d irection. To make a molecular design, a scaffold is run exactly once through each helix; performed in a raster-fill manner, this creates a 'fold ing path' (Figure 18b). To hold the scaffold in this shape, helper strands are added to create a regular pattern of antiparallel crossovers (Figure 18c). Figure 19 illustrates the versatility of shapes-programmed DNA origami with a high yield in excess of 70%. Each shape seen in Figure 19 uses 7000-base long scaffolds requiring more than 200 DNA strands for a final molecular weight of 15,000 nucleotides. Thus, the DNA origami structure has a molecular weight that is l00X that of the original DX model and nearly 6X larger in geometric construction where 50 billion copies of the pattern are created at once. With this technique, a device has been created that has a molecular weight of the component of cells that can synthes ize proteins and amino acids- the ribosome. For the first time, we are now capable of self-assembling structures whose size and complexity rival that of Nature's most complex self assembled machines. A B 1 1 11 1 1 ~ - ~'t'fl\tt - JfflV,Jw Reagen! Controller Herringbone Binary Tree Column Array "'d!Yld..ily □ lnldvAM•""'"'"""' - -­ Figure 17. (A) Schematic diagram of a 16-column microfluidic DNA synthesizer. The control lines are shown in red, the fluidic lines in blue, the herringbone mixers in yellow, and the square profiled binary tree and reactor columns in green. (8) Close up schematic of the column array (106). UNCLASSIFIED/ /FOA OFFICil.t.k W&E 8HL1/ 33

a Fi ll th hape with helices and periodic I \ hefloes approXll!lale shape to with n a '( a single tum b Raster fill helices with a ffold strand. arra of cro sovers. 1 helical tum: ~ . 1'id - 1nm lnlar-hellx gap y 10.6 bases, 3.63 run 32 bases : 3 turns X A ingle long Q Q 0 ffi - - UNCLASSIFIED/ /EOA QFFI@IAL U.!E Gilli seam C dAdd helper strands to bind the scaffold together. A helical representation of the structure. 2 2 I hairpin label unstrained: slrailed: +1 . p 1i'l -1 ~ ~ 0 5 E 5 E ,._ 0 11111111 1u1•1t HIIIIII HIPIII 11111111 n11u11 ltnDII UII II ::J C: ::i .:J C ,un111 11111 11 1 IIIUU ~ ll fllllN """.. JHIIUI c 5 c ::j E ::J IMIUI 11111111 IUIIUl 111111111 11111 111 tlltll ll 1111111 , fflrtll l C :Sc ~ 11111111 11NIUI 1111•11 1111 1111 UIII IIUIIU 11111 111 11111111 ::J C ::J C :::J 1111111 MUii llltll " 01111 111 l lli! III 1111\lfl f\lllU 11111 11 ::J C: ::i C .:::J C lll11111 l .. jllll flll l~I lllltli l 11 0111 10( ... !!il!!}J. ~ llU!!!J, Figure 18. Des ign of DNA origami. (112) -1 '" ....'" 5 E 1111 ,111 11111111 b ■ .. . Figure 19. Several DNA origam i fold ing paths. (112) UNCLASSIFIED//FOA 0FFI€IAk Wlii &Nk¥ 34

UNCLASSIFIED/ /POK: OPPICllcL l:191!!! OHL'/ Engineering DNA-Based Logic Gates This branch of nanotechnology employs DNA enzymology to induce molecular behavior in solution that responds to an appropriate nucleic acid input. The goal is to make reliable DNA­ based logic gates that can be used to assemble complicated logic circuits, which, in turn, can be used to control complex molecular devices (115). Strictly speaking the silicomimetic solution-phase approaches are not connected to traditional DNA nanotechnology, or Adleman's model of DNA computing (116). However, there is some overlap of concepts, and all these approaches can be integrated in order to achieve complex functional behaviors. There are two primary requirements that a DNA-based logical device has to fulfill: first, the device should have the ability to integrate the presence or absence of several inputs into a single output. Second, a device has to be designed in such a way that a limited number of simple devices can be combined into a variety of complex circuitries. This usually means that one device can communicate with other components through some kind of information transfer. Furthermore, devices that could communicate with sensors, and produce outputs for autonomous therapeutic and diagnostic devices are of our interest, because they may one day function as silicon-free expert systems. DNA-based logic gates are intended to perform as traditional binary logic gates, which turn 1 's and O's of input into 1's and O's of output, which form the central processing units in digital computers. Recently, Seeman and colleagues at New York University have found a clever new way to tease DNA strands into mimicking exclusive OR (XOR) logic gates ( 117). In the case of an XOR gate, the rule is simple: when the same two digits enter the gate, a 0 comes out; two different entering digits return a 1. In this latest case of DNA computing, inputs are replaced by single-stranded molecules, and how they bind with each other--base pair to base pair--dictates the operations. In essence, the collection of input molecules that are used set up the problem; once that's done, the answer self-assembles in a single step. The near term goal is to build DNA-based computing modules and to develop nanoscopic machines that could exist in living organisms, sensing conditions and making decisions based on what they sense, then responding with actions such as releasing medicine or killing specific cells. Logic Operation by Deoxyribozymes This biocomputing approach is based on two libraries of nucleic acids, one consisting of an allosterically modified deoxyribozyme (nucleic acid catalysts made of DNA) and the second, its substrates. A DNAzyme is associated with gene replication only, and they exist only in the laboratory. Nevertheless, they are very powerful tools for building DNA-based nanosystems. The functions of these molecular units are essential for molecular logic gates and the seamless integration into DNA-based computing devices. These constructs are capable of carrying out simple arithmetic operations ( 118) and have the capability to arrange several gates around a common substrate. (119) These devices have oligonucleotides (short ssDNA) as both inputs and outputs. Phosphodieseterase deoxyribozymes cleave other oligonucleotides, producing shorter strands as outputs. For example, operation of the simplest sensors is illustrated in Figure 20. The stem-loop of YESx molecule inhibits the catalytic module through the overlap of the stem with the substrate recognition region. Hybridization of ix to the complementary loop opens the stem to allow substrate binding to proceed. The YESx gate behaves as a two-state switch, with the active state in the presence of input. The combination of these sensors for input to gate logic is illustrated in Figure 21. Generalized approaches have three-input gates (including NOT, AND, ANDNOT, ANDANDNOT gates) based on the deoxyribozyme logic. (121) These gates are generic and modular, in the sense that other deoxyribozymes could be UNCLASSIFIED// FOR OPPICilcL tl:!I!! 8HLY 35

UNCLASSIFIED//fQq OFFI&il.t.k WSE 8Ht'I" combined in parallel into similar constructs, with the expectation of similar behavior. That means, in principle, we can construct enzymat ic networks that perform Boolean calculat ions of any complexity. At this moment, serial connections are prohibitively slow to be used in practical devices, thus reported circuits are lim ited to implic it OR connectivity between individual elements. UNCLASSIFIED// FOR OFFICIAL U:!E eutv 36

UNCLASSIFIED/ {FOR CFEICl.t.k l481!! er•tt Figure 20. Functional design of a DNA based logic gate . UNCLASSIFIED/ /POft. OPPl@IAL l48i &PU,¥ 37

UNCLASSIFIED/) FOR OFFICIAL l:ISE 8PUs:¥ Figure 21. Simplistic rendering of a DNA logic gate . UNCLASSIFIED// FOR OFFICIAL l:ISE 8PU,¥ 38

UNCLASSIFIED/ /FAA: QFFI&il.t.k YSIE 8HtY Deoxyribozyme-based Boolean Automata The deoxyribozyme logic gates were applied to the construction of the first DNA-based Boolean automata capable of autonomously responding to human inputs: "MAYAs" are automata playing a game of tic-tac-toe against a human player. In tic-tac-toe there are a maximum of 4 moves by the human player when MAYA has the first move. The initial MAYA automaton played a simplified game, always claiming the center first, and the first human move is symmetry-restricted to one corner or one side move. These simplifications led to a representation of the game as a series of Boolean formulae that compute the automaton's output in each well, based on the human inputs present in all wells. These formulae were mapped to 23 deoxyribozyme-based logic gates by arranging gates in the individual wells around a common substrate. These "hard-wired" automata give the human no chance to win (Figure 22, Figure 23). (120, 122) One, two and three input deoxyribozyme-based logic gates are allosterically modulated by 32 human-operated input oligonucleotides: 97 logic gates distributed across 9 wells which calculate automaton moves, and 32 gates (boxed) display human moves by implementation of a two-color fluorogenic output system. Even though this mechanism is simplistic in nature, it has performed flawless Boolean calculations. rA-T--A-"f-C.--A-C-t:--F d It i:, ;, 0 0 0 0 0 1 0 0 0 0 , 0 0 , , 0 I 0 0 1 0 1 0 1 0 0 I 1 0 1 1 1 0 Figure 22. Basic gate structures, derived from allosterically regulated deoxyribozyme E6, for playing tic-tac­ toe against a human opponent. The truth tables constructed are sufficient to ensure the human player cannot win the game. (120) UNCLASSIFIED//EAA: QFFiliCiliOI. l'ii QPII.¥ 39

UNCLASSIFIED/ j FOR OFFICiltL tJ!lf! 8HL¥ Figure 23. First Generation (MAYA I} DNA-based Logic Circuit that plays tic-tac-toe . Robotic Bases (The DNA Robot) Illustrated thus far are various structures that can be built by DNA-based approaches, and such components can be combined into even more complex systems at a nanoscale. As an example of the integration of different DNA components, we present here an approach that that will eventually lead to the design of DNA "robots." In order to make such robots, we must integrate three, up to now separate, molecular functions into either the molecule itself, or into the interactions between the molecule and the environment it traverses. These three functions are sensing, informati on processing, and movement. In principle, DNA provides us with all these functions, and we should be able to build functional units that could be jus t ifiab ly called molecular robots solely out of nucleic acids. We hope that DNA robots will enable us to approach on a molecular scale, the important issues in the field of 'ordinary' robotics such as; evolution, learning, multi-robot inte raction, self-replications, and self-repair. Sensing devices are necessary to extract information from the environment such as existence of a specific molecular species in the solution and shape and properties of the UNCLASSIFIED//EAR OfiFI&ilAL Y!II!!! 8fltt 40

UNCLASSIFIED/; FOR OFFICIAL U.!I! er•tY landscapes traversed by molecules. The capability for computation is also needed to analyze these data and, in many applications, some rudimentary processing units such as the logic gate networks shown in the previous section would be enough to achieve useful functionalit ies. To exhibit these capabilit ies, a team of scientists from Columbia University, Arizona State University, the University of Michigan, and the California Institute of Technology (Caltech) (123) have programmed an autonomous molecular "robot" made out of DNA to start, move, turn, and stop while following a DNA track. This development could ultimately lead to molecular systems that might one day be used for medical therapeutic devices and molecular -scale reconfigurable robots-robots made of many simple units that can reposit ion or even rebuild themselves to accomplish different tasks. The researchers constructed a trail of molecular "bread crumbs" on the DNA origami track by stringing additional single-stranded DNA molecules, or oligonucleot ides, off the ends of the staples. These represent the cues that tell the molecular robots what to do-start, walk, turn left, turn right, or stop, for example-akin to the commands given to traditional robots. We will discuss the "nano walker" in greater detail in a later section in this treatise. It is this third function, the controlled movement of molecules through the aid of nanometers that will be discussed next. DNA Nanomotors Molecular-size motors have evolved in nature, where they are used in virtually every important biological process. In contrast, the development of synthetic nanometers that mimic the function of these amazing natural systems and that could be used in man-made nanodevices is in its infancy. Building nanoscale motors is not just an exercise in scaling down the design of a macroworld engine to nanoscale dimensions . Many factors such as friction, heat dissipation and many other mechanical behaviors are just very different at this scale - everything is constantly moving (under kinet ic energy supplied by the heat of the surroundings) and being buffeted by other atoms and molecules (Brownian motion). The concept of a single DNA molecule nanometer was already introduced in early 2002. (124) DNA nanometers are synthetic biochemical devices whose motion can be controlled at the molecular scale. DNA molecular motors will be indispensable parts for the construction of molecular robots. The motion of a robot should be well-controlled by means of some molecular input, or it should be driven autonomously by cues from the environment. First approaches to encode molecular motion in DNA structures were based on the reversible and input-sensitive conformational changes. For example, the first reported use of a DNA motor was a nanomechanical device which generated twisting motion along the helix axis based on 8-Z transition controlled by ionic strength of a solution. (125) Then, the first molecular tweezers were driven by successive reversible branch migrations of DNA strands, and these strands were called "fuel" and "anti-fuel." (126) The next level in complexity were "remotely­ controlled" walkers introduced by Seeman and Pierce, as they were based on a series of successive unidirectional conformational changes driven by strand displacement . These sequential conformationa l changes were microscopic analogs of macroscopic commands such as: "lift the first leg", "drop the first leg to the next available position"; "lift the second leg", "drop the second leg to the next available position", with a cumulative result of a translational movement of a molecule along a track. One drawback of these systems was that they were not autonomous, and that each conformational change had to be triggered separate ly, while one advantage was that they could have been monitored easily in bulk with fluorescence measurements. The first autonomous systems were based on nucleic acid UNCLASSIFIED//EOA: OFFICil.t.k YSf 8HtY 41

---- UNCLASSIFIED//EOR OFFl&IJ..L ttSI!! BHLI enzymes, e.g., deoxyribozymes, and performed either solution phase conformational changes, or were proposed to move autonomously along a linear track over up to four steps. (127) A new paper published in the journal Nano Letters details how the researchers created the first light-powered nanometer (Figure 24) out of a photoreactive chemical and a short length -- only 31 base pairs -- of DNA. (128) The motor looks a bit like a pair of tweezers. When UV light hits it, the photoreactive chemical causes the DNA to bend, which acts as the power stroke of the motor, opening the tweezers. Light in the visible spectrum, in turn, resets the chemical, closing the tweezers. The team from the University of Florida built a new type of "molecular nanometer" driven only by photons, or particles of light . While it is not the first photon-driven nanomotor, the almost infinitesimal device is the first built entirely with a single molecule of DNA, offering a simplic ity that increases its potent ial for development, manufacture and real-world applicat ions in areas ranging from medicine to manufactur ing. In the coming years, nanometers could become a component of microscopic devices that repair individual cells or fight viruses or bacteria. Although in the conceptual stage, those devices, like much larger ones, will require a power source to function . Because it is made of DNA, the nanomotor is biocompatible. Unlike traditional energy systems, the nanomotor also produces no waste when it converts light energy into motion. zob oz n< > . '. . . 'I '• I . •. T TOOT G ____, \._.... ). V I tern' tem Loop Figure 24. A single molecule DNA-based nanomotor driven by photons . (128) Nanometers can be daisy -chained together, so that small movements on the microscopic scale add up to large movements at the macroscopic scale. In biology, muscle contraction and plant movement both result from small motors working together to create big changes. Scientists are attempting to mimic the many molecu lar motors that have been proven in nature. Today, biology is acting as a blueprint for the development of many DNA-based devices . One such biologically based mechanism is the spider-like-inspired nanowalker. UNCLASSIFIED//POR: Offl@IAL Y&li 8Ptllf 42

UNCLASSIFIED/ /Fdk OFFICIAL USE l>flti" Figure 25. AFM Scan of walkers as they follow a track pattern places on the surface. Each can take up to 50 steps. Visible is the body of each walker as they carry cargo (gold atoms} along the designed path. Scale bar is 50 nm. (129} The Nano Walker; a Spider-like Approach A simple cargo carry ing robot was demonst rated by Gu. (129) Spiders follow a designated path placed on a surface, picking up gold atoms as they pass over them. Such a device could be used to collect samples from asteroid or planetary surfaces . On a massive scale, they could collect mission critica l mater ials from an explorat ion site. In a different approach, a nano-scale molecular proto-robot with a potential for integration with computing and sensing (i.e ., into a real molecular robot), (130) was introduced by Stojanovic: This design starts with a consideration of the following situation; a surface covered with substrates in a scaffold configuration is exposed to a single deoxyr ibozyme that will bind to its substrate, cleave it, release both products, and then bind again to another substrate, repeating the cycle, for as long as there are substrates available on the scaffold. (Figure 26) This deoxyribozyme would move over the surface with the process called self­ repelling random walk, being attracted more by substrates, than by the residual product on the surface. But every loss of the contact with surface could lead to the removal of the deoxyribozyme in the bulk solution, with experimentally determined processivity (cleaving substrates without leaving into bulk solution) into single digits. However, combin ing the concepts of self-repelling walk of deoxyribozymes and multivalency, led to testing assemblies with 2-6 deoxyribozyme legs displayed on inert bodies (i.e., spiders), and the processivity was increased to up to several thousands. Essentially, the cumu lative binding of multiple catalysts to substrates would attach the spider tightly to the matrix, whereas individual catalysts would still be able to rapidly cleave substrates, release products, and bind new substrates through the process of dissociation and rebinding. If density of UNCLASSIFIED/ /FAR OSSICl.\k W&E 8HLY 43

UNCLASSIFIED/ /FOR OFFICIJcL l:ISI: 8HL¥ substrates and size of legs are adjusted well, the assembly is continuously moving to new substrate-covered areas. Due to residual binding of deoxyribozymes to products, even if the spiders were surrounded by the product-covered areas, they would be able to move over t hem by ordinary random walk, until they would find substrates again. Importantly, directional movement of spiders can be accomplished by aligning substrates in directional paths, for example, by displaying them on self-assembled structures, including origami (Figure 27). Further, simple computing can be introd uced by logic gates as legs. The nano walker could be hybridized to repair DNA based machinery, including DNA computers, when they are being assembled, or when they are damaged from cosmic rays, for example. Figure 26. The Nano walker made at Columbia University is a protein molecule decorated with three legs--single-stranded DNAzymes, synthetic DNA molecules that act as enzymes and catalyze a reaction. UNCLASSIFIED//EOAt QFFICilit.L YSI!! 9HL I 44

-- UNCLASSIFIED/ /FOR 8FFl@IAL U5E Oiltf a 5' , Captun, leg d . Ill51 n c r- StartAr1-~"=..,..... • VV\. ..."W'J'>... TRIGGER strand b 3' Spider~Y G -- Follow~ -~~-i' •c ~ T - A T A -- - C-G C A T - A a-kJl. T -A ~ AC. ; : °'c?;;:~ o-c."l;p c 3• - - Turnl .,. A T -A ___{ .,,:A-;,]' --~-~~----+'G-A~;:1 8-17 A- T A- T ---Substrate o-c Product === DNA r~ T ·A em:yme G- C A - T A •T A •T A •T ,_,A· T n~ =~ ~ - -- Stop --3 / 3'' < - -4:.--4:. Origami Origam i --- ~~-- ~ -► 4:.-.4:._ Figure 27. Deoxyribozyme-based molecular walker and origami prescriptive landscape. a, The NICK3.4A311 spider consists of a streptavidin core, with a 20-base single-stranded DNA (green) that positions the spider at the start, and three deoxyribozyme legs. b, The 8-17 deoxyribozyme cleaves its substrate at an RNA base, creating two shorter products (respectively 7 and 11 bases in length). Dissociation from these products allows legs to associate with the next substrate. c, Spider actions: after release by a 27-base single-stranded DNA trigger, the spider follows the substrate at a STOP position. d, Schematic of the DNA origami landscape with positions A-E labelled; track EABD is shown with I indicating a topographical imaging marker. e, A representative origami landscape showing the START position (green), the substrate track (brown), STOP and CONTROL sites (red), and a topographical imaging marker (blue). rA, ribonucleotide position at which cleavage occurs; dA, deoxyribonucleotide within non-chimeric and non-cleavable analogue of substrate at a STOP position. (123) DISCUSSION The first operating quantum computers capable of solving real-world problems will commence within 10 years and be based on ion-trap technology. This is entirely based on the amount of research resources dedicated to the problem and the fact that there appear to only be engineering challenges remaining. Atomic and ion traps require very substantial cryogenic and EM shielding systems and are not practical for space travel. Pure photonic technologies available today have difficulty with both miniaturization and scalability. However, the amount of active work in the field makes a disruptive advance likely in the 10-year timeframe. Optical computers will likely be realized in the 20-year horizon; however, the very powerful promise of quantum computing will still have issues with photon loss in any solid state device. The 40-year horizon will see photon technologies play an essential but supporting role in distributed quantum computing. The realized systems will have radiation tolerance advantages over current semiconductor technology and are likely to augment or even replace general purpose computing devices for space travel. Hybrid designs utilizing arrays of quantum dots and photon communication channels will be an option for space travel supercomputing on the 40-year timescale. These systems operate at attainable tempe ratures without cryonics, and require no more shielding than humans. It is likely that spintronics will be an essential ingredient . UNCLASSIFIED/ ,{FOR OEEICIAk WSf 9HL I 45

UNCLASSIFIED//FOR OFFICIAL USE 014Li Simple organic computing based on DNA tiles will be real ized in the next 20 years. On the 40-year time horizon, useful DNA-based devices will be essential space exploration tools. These could take the form of orbital-delivered wireless sensors searching planeta ry/ astero id features or for essential compounds such as high concentrations of water. DNA computers will be realized on the 40-year timeline. Their advantage over solid state devices will be the ability to repair nanoscale elements damaged in normal use or by cosmic radiation. These will not be the fastest systems in the astro-arsenal, but they may be the most robust. CONCLUSION We have presented an introduction to quantum computing and the technologies that comprise the current state-of-the-art. In the 10-20 year horizon, we will see optical and DNA-based computers realized on small production scales, but their readiness level for space travel will be lacking. On the 40-year horizon four major advances in space-ready technology will be seen: devices developed for optical computing will allow an all-optical computer to augment or replace general purpose computers; optical communication will play an essential role in hybrid designs of space-based quantum computers along with quantum dots; DNA devices will perform simple distributed sensor data analyses; and fault tolerant DNA computers will be available for mission-critical analysis tasks. UNCLASSIFIED/ ,{EQR OEEICI\L W&E 8HtY 46

UNCLASSIFIED/ /FOA 0FFI€iIJ..l YSIE 8HLY UNCLASSIFIED/ /FOR: orr1e1J1ct U:!I!! OHL¥ 47

UNCLASSIFIED/ /FOR OFFI&IAl l::181: 8HLY REFERENCES 1. Turing A. On Computable Numbers, with an Application to the Entscheidungsproblem. Proceedings of the London Mathematical Society 1937 ;42: 230-65. 2. Cho K, George AD, Subramaniyan R. Fault-tolerant parallel algorithms for adaptive matched-field processing on distributed array systems. Journal of Computational Acoustics. 2005;13(4):667-87. 3. Cho K, George AD, Subramaniyan R, Kim K. Fault-tolerant matched-field processing in the presence of element failures. Journal of Computational Acoustics. 2006; 14(3): 299-319. 4. Einstein A. Zur Quantentheorie der Strahlung (On the Quantum Theory of Radiation). Physikalische Zeitschrilt. 1917;18:121-8. 5. Ladd TD, Jelezko F, Laflamme R, Nakamura Y, Monroe C, O'Brien JL. Quantum computers. Nature. 2010 Mar 4;464(7285) :45-53. 6. Shor PW, editor. Algorithms for Quantum Computation: Discrete Logarithms and Factor ing. 35th Annual Symposium on the Foundations of Computer Science; 1994: IEEE Computer Society Press, Los Alamitos, CA. 7. Grover LK. Quantum mechanics helps in searching for a needle in a haystack. Physical Review Letters. 1997 Jul;79(2):325-8. 8. Grover LK. Fixed-point quantum search. Physical Review Letters. 2005 Oct;95(15). 9. Bennett CH, Brassard G, Popescu S, Schumacher B, Smolin JA, Wootters WK. Purification of noisy entanglement and faithful teleportation via noisy channels. Physical Review Letters. 1996 Jan;76(5):722-5. 10. Gottesman D, Chuang IL. Demonstrating the viability of universal quantum computation using teleportation and single-qubit operations. Nature. 1999 Nov;402(6760): 390-3. 11. Feynman RP. Simulating Physics with Computers. International Journal of Theoretical Physics. 1982;21(6-7):467-88. 12. Ortiz G, Gubernatis JE, Knill E, Laflamme R. Simulating fermions on a quantum computer. Computer Physics Communicat ions. 2002;146(3):302 -16. 13.Knill E, Laflamme R. Theory of quantum error-correcting codes. Phys Rev A. [Article]. 1997 Feb;55(2) :900 -11. 14. Li YF, Dumer I, Pryadko LP. Clustered Error Correction of Codeword-Stabilized Quantum Codes. Physical Review Letters. [Article]. 2010 May;104(19):4. 15. Mizel A, Lidar DA, Mitchell M. Simple proof of equivalence between adiabatic quantum computation and the circu it model. Physical Review Letters. 2007 Aug;99(7). 16. Raussendorf R, Briegel HJ. A one-way quantum computer. Physical Review Letters . 2001 May;86(22):5188-91. 17.Raussendorf R, Harrington J, Goyal K. A fault-to lerant one-way quantum computer. Annals of Physics. 2006 Sep;321(9):2242 -70. 18. B. Trauzettel, D.V. Bulaev, D. Loss, G. Burkard. Spin qubits in graphene quantum dots, Nat Phys 3, 192-196 (2007). 19. WeinsteinY S, Hellberg C S and Levy J 2005 Quantum-dot cluster-state comput ing with encoded qubits Phys. Rev. A 72 020304. 20.A.N. Jordan, B. Trauzettel, G. Burkard. Weak-measurement theory of quantum-dot spin qub its, Phys. Rev. B 76, 155324 (2007). UNCLASSIFIED/ /FOA QFFl&IAL Y!H!! f>flt I 48

UNCLASSIFIED/ /EOR OFFIEIAk W&li 8PtLY 21.W. Pauli, Z. Physik, 31 (1925) 373. 22.Kouwenhoven LP ' , Sch .. on G' , and Sohn LL' , in Mesoscopic Electron Transport ' , NATO ASI Series E', Vol. 345 (Kluwer Academic Publishers', Dordrecht', 1997). 23. Wolf SA, Awschalom DD, Buhrman RA, Daughton JM, vonMoln 'ar S, Roukes ML, Chtchelkanova AY, and Treger DM, Science 294, 1488 (2001). 24. Recher P, Sukhorukov EV, and Loss D, Phys. Rev. Lett. 85, 1962 (2000). 25. Folk JA, Potok RM, Marcus CM, and Umansky V, Science 299, 679 (2003). 26. Hanson R, Vandersypen LMK, Willems van Beveren LH, Elzerman JM, Vink IT, and Kouwenhoven LP, Phys. Rev. B 70, 241304 (2004). 27.Ono K, Austing DG, Tokura Y, and Tarucha S, Science 297, 1313 (2002). 28. For a comprehens ive recent review on the topic, see Cerletti V, Coish WA, Gywat 0, and Loss D, Nanotechnology 16, R27 (2005). 29. Hanson R, Kouwenhoven LP, Petta JR, Tarucha S, and Vandersypen LMK, Rev. Mod. Phys. 79, 1217 (2007). 30.Novoselov, K.S. et al. Electric field effect in atomically thin carbon films. Science 306, 666-669 (2004). 31. Novoselov, K.S. et al. Two -dimensional gas of massless Dirac fermions in graphene. Nature 438, 197-200 (2005). 32 . Zhang, Y., Tan, Y.- W., Stormer, H.L. & Kim, P. Experimental observation of the quantum Hall effect and Berry's phase in graphene. Nature 438, 201-204 (2005). 33. Cheianov, V.V. & Fal'ko, V.I. Selective transmission of Dirac electrons and ballistic magnetoresistance of n - p junctions in graphene. Phys. Rev. B 74, 041403(R) (2006). 34. Dombay, N.& Calogeracos, A. Seventy years of the Klein paradox . Phys. Rep. 315, 41-58 (1999). 35. Katsnelson, M.I., Novoselov, K.S.& Geim, A.K. Klein paradox in graphene. Nature Phys. 2, 620 - 625 (2006). 36. McClure, J. W. Diamagnetism of graphite. Phys. Rev. 104, 666-671 (1956). 37.Semenoff, G.W. Condensed-matter simulation of a threedimens ional anomaly. Phys. Rev. Lett. 53, 2449-2452 (1984). 38. DiVincenzo, D.P. & Mele, E.J. Self-consistent effective-mass theory for intralayer screening in graphite intercalation compounds. Phys. Rev. B 29, 1685-1694 (1984) . 39. Silvestrov, P.G. & Efetov, K.B. Quantum dots in graphene. Phys. Rev. Lett. 98, 016802 (2007). 40.Nilsson, J., Castro Neto, A.H., Guinea, F. & Peres, N.M.R. Transmission through a biased graphene bilayer barrier. Preprint at www .arXiv .org/cond -mat/0607343 (2010). 41. De Martino, A., Dell'Anna, L. & Egger, R. Magnet ic confinement of massless Dirac fermions in graphene. Preprint at www .arXiv.org/cond -mat/0610290 (2010) . 42. Silvestrov, P.G. & Efetov, K.B. Quantum dots in graphene. Phys. Rev. Lett. 98, 016802 (2007). 43. Hanson R, Kouwenhoven LP, Petta JR, Tarucha S, and Vandersypen LMK, Rev. Mod. Phys. 79,1217 (2007). 44. Nakada K, Fujita M, Dresselhaus G, and Dresselhaus MS, Phys. Rev. B 54, 17954 {1996). 45. Brey Land Fertig HA, Phys. Rev . B 73, 235411 (2006) . 46.Son Y-W, Cohen ML, and Louie SG, Phys. Rev. Lett. 97, 216803 (2006). 47.Giovannetti G, Khomyakov PA, Brocks G, Kelly PJ, and van den Brink J, Phys. Rev. B 76, 073103 (2007). UNCLASSIFIED/ /EOR OFFIGIAL W&li 8PtLY 49

UNCLASSIFIED/ /FOR 8FFI@IAL 1::181!! 8HLY 48. Zhou SY, Gweon GH, Fedorov AV, First PN, de Heer WA, Lee DH, Guinea F, Castro Neto AH, Lanzara A, Nature Mater. 6, 770 (2007). 49. Enderlein C, Kim YS, Bostwick A, Rotenberg E, and Horn K, New Journal of Phys. 12, 033014 (2010). 50.Trauzettel B, Bulaev DV, Loss D, and Burkard G, Nature Phys. 3 192 (2007). 51. Recher P, Nilsson J, Burkard G, and Trauzettel B, Phys. Rev. B 79, 085407 (2009). 52. F. Munoz-Rojas, D. Jacob, J. Fernandez-Rossier, and J. J. Palacios, Coherent transport in graphene nanoconstrictions. PRB 74, 195417 (2006 ). 53. Reddy, C.D., Ramasubramaniam, A., Shenoy, V.B. & Zhang, Y.-W. Edge elastic properties of defect-free single-layer graphene sheets. Applied Physics Letters 94, 101904 (2009). 54.Han, M. Y.;o·· zyilmaz, B.; Zhang, Y.; Kim, P. Phys. ReV. Lett. 2007, 98, 206805. 55.Chen, Z. H.; Lin, Y. M.; Rooks, M. J.; Avouris, P. Physica E 2007, 40, 228-232. 56. Geim AK, Novoselov KS. The rise of graphene. Nat Mater. 2007 Mar;6(3): 183-91. 57.Geim AK, Novoselov KS. The rise of graphene. Nat Mater. 2007 Mar;6(3):183-91. 58.Trauzettel B, Bulaev D V, Loss D and Burkard G 2007 Nat. Phys. 3 192. 59. Schnez A, Ensslin K, Sigrist Mand Ihn T 2008 arXiv:0810.3216v1. 60. Peres N M R, Rodriquez J N B, Stauber T and Lopes dos Santos J M B 2008 arXiv: 0810.4768v 61. Chen H-Y, Apalkov V and Chakraborty T 2007 Phys. Rev. Lett. 98 186803. 62. De Martino A, Dell'Anna Land Egger R 2007 Phys. Rev. Lett. 98. 63. Engel H-A and Loss D, Phys. Rev. Lett. 86, 4648 (2001). 64. Borhani M, Golovach VN, and Loss D, Phys. Rev. B 73, 155311 (2006). 65. Koppens FHL, Buizert C, Tielrooij KJ, Vink IT, Nowack KC, Meunier T, Kouwenhoven LP, and Vandersypen LMK, Nature 442, 766 (2006). 66. Hanson R, Witkamp B, Vandersypen LMK, Willems van Beveren LH, Elzerman JM, and Kouwenhoven LP, Phys. Rev. Lett. 91, 192802 (2003). 67. Engel HA, Loss D. Detection of single spin decoherence in a quantum dot via charge currents. Physical Review Letters. 2001 May;86(20):4648-51. 68. Nielsen MA and Chuang IL, Quantum Computation and Quantum Information, Cambridge University Press (2000). 69. Burkard G, Loss D, and DiVincenzo DP, Phys. Rev. B 59, 2070 (1999). 70.Burkard G, Loss D, and DiVincenzo DP, Phys. Rev. B 59, 2070 (1999). 71. Recher P, Nilsson J, Burkard G, Trauzettel B. Bound states and magnetic field induced valley splitting in gate-tunable graphene quantum dots. Physical Review B. 2009 Feb;79(8). 72.Svore KM, Terhal BM, and DiVincenzo DP, Phys. Rev. A 72, 022317 (2005). 73.Ando T, J. Phys. Soc. Jpn. 69, 1757 (2000). 74. Huertas-Hernando D, Guinea F, and Brataas A, Phys. Rev. B 74, 155426 (2006). 75. Bulaev DV, Trauzettel B, and Loss D, Phys. Rev. B 77, 235301 (2008). 76. Kuemmeth F, I lani S, Ralph D, and McEuen PL, Nature 452, 448 (2008). 77.Huertas-Hernando D, Guinea F, and Brataas A, Phys. Rev. B 74, 155426 (2006). 78. Petta J. R., et al. A Coherent Beam Splitter for Electronic Spin States, Science 327, 669 (2010) 79 .Taylor, J. M. et al., Phys. Rev. Lett. 94, 236803 (2005). 80. Knill E, Laflamme R, Milburn GJ. A scheme for efficient quantum computation with linear optics. Nature. 2001 Jan;409(6816) :46-52. 81. Haffner H, Roos CF, Blatt R. Quantum computing with trapped ions. Physics Reports­ Review Section of Physics Letters. 2008 Dec;469( 4): 155-203. so UNCLASSIFIED/ /FOR errl@IAI::: Yliliii Qt11 X

UNCLASSIFIED/ /FOR OFFl@IAL YSE OHL¥ 82. Bath J. and Turberfield A.J. DNA nanomachines. Nature Nanotechnology, VOL 2 : MAY 2007. 83. Watson JD, Crick FH. Molecular structure of nucleic acids; a structure for deoxyribose nucleic acid. Nature . 1953 Apr 25;171(4356):737-8. 84. Sanger F, Nicklen S, Coulson AR. DNA sequencing with chain-terminating inhibitors. Proc Natl Acad Sci US A. 1977 Dec;74(12):5463-7. 85. Saiki RK, Scharf S, Faloona F, Mullis KB, Horn GT, Erlich HA, et al. Enzymatic amplification of beta-globin genomic sequences and restriction site analysis for diagnosis of sickle cell anemia. Science. 1985 Dec 20;230(4732) :1350-4. 86. Mao, C and Yu, H. Growing millimeter-sized DNA crystals. SPIE Newsroom, April 2006. 87 .Seeman NC . Nucleic acid junctions and lattices J. Theor . Biol. 99 237-47, 1982. 88. Seeman, N. C. De nova design of sequences for nucleic acid structural engineer ing. J. Biomol. Struct. Dyns 8, 573-581, 1990. 89.Carbone A., Seeman NC. Molecular Tiling and DNA Self-assembly. Aspects of Molecular Computing. 61-83, 90. Winfree E, Yang X, Seeman NC (1998b) Universal computation via self-assembly of DNA: Some theory and experiments. In: Landweber LF, Baum EB, editors. DNA­ based computers II. Providence, Rhode Island: American Mathematical Society. pp. 191-213. 91. Winfree E Simulat ions of computing by self-assembly. Technical report CS­ TR: 1998.22. Pasadena, California: California Inst itute of Technology. 1998. 92. Wang H. Proving theorems by pattern recognition II. Bell System Tech J 40: 1-42, 1961. 93. Wang H An unsolvable problem on dom inoes. Technica l report BL-30 (II-15). Cambridge, Massachusetts: Harvard Computation Laboratory.1962. 94. Winfree E., Liu F., Wenzler LA, Seeman N C. Design and Self-Assembly of Two­ Dimens ional DNA Crystals, Nature, VOL 394 6 AUGUST, 1998. 95. Winfree, E. Algorithmic Self-Assembly of DNA: Theoretica l Motivations and 2D Assembly Experiments. Journa l of Biomolecu lar Structure and Dynamics 11: 263 - 270, 2000. 96. Winfree E. and Bekbolatov R. Proofreading tile sets: Error correction for algorithmic self-assembly. In Proceedings of the Ninth International Meeting on DNA Based Computers. Madison, Wisconsin, June 2003. 97. Reif, J.H., Sahu, S. and Yin, P. "Compact Error-Resilient Computational DNA Tilin gs," Nanotechnology Science and Computation (Chen, J. et al. Eds.), Springer-Verlag, Berlin Heidelberg, pp. 79-103, 2006. 98. Fujibayashi, K., Murata, S. "A method of error suppression for self-assembling DNA tiles," DNA Computing 10 (Ferrett i et al. Eds.), LNCS 3384, Springer- Verlag Berlin Heidelberg, pp. 113-127, 2005. 99. Fujibayashi, Yu Zhang D., Winfree E., Murata S. Error Suppression Mechanisms for DNA Tile Self-Assembly and their Simulations. Nat Comput. Springer, 2008 . 100. Adleman, L.: Molecular Computation of Solutions to Combinatorial Problems, Science, Vol.266, pp.1021 -1024, 1994. 101. Winfree, E.: Algorithmic Self-Assembly of DNA, Ph.D Thesis, California Institute of Technology, 1998. 102. Winfree, E., Yang, X. and Seeman, N. C.: Universal Computation via Self -assembly of DNA : Some Theory and Experiments, DNA based Computers 2, DIMACS Series in Discrete Mathematics and Theoretical Computer Science, Vol.44, pp.191- 213,1999. UNCLASSIFIED//FOR: en ILIA[ USE ONLY 51

UNCLASSIFIED/ /FOA OFFI€1Ak Wlili QPILY 103. Winfree, E., Liu, F., Wenzler, L., Seeman, N.C.: Design and self-assembly of two­ dimensional DNA crystals, Nature, Vol. 394, pp.539-544, 1998. 104. Several papers related to error suppression of DNA tiles are presented in: Preliminary Proceedings of Tenth International Meeting on DNA Computing (Edtors. C. Ferretti, et. al), Milan, 2004. 105. Somei, K., Kaneda, S., Fujii, T., and S. Murata, "A microfluidic device for DNA tile self-assembly," DNA Computing 11 (A. Carbone and N.A. Pierce Eds.), LNCS 3892, Springer-Verlag Berlin Heidelberg, pp. 325-335, 2006. 106. Somei, K., Kaneda, S., Fujii, T., and S. Murata, "A microfluidic device for DNA tile self-assembly," DNA Computing 11 {A. Carbone and N.A. Pierce Eds.), LNCS 3892, Springer-Verlag Berlin Heidelberg, pp. 325-335, 2006. 107. Huang,M.C., Ye,H., Kuan,Y.K., Li,M.H. and Ying,J .Y. (2009) Integrated two-step gene synthesis in a microfluidic device. Lab. Chip, 9, 276-285. 108. Mueller,S., Coleman,J.R. and Wimmer,E. (2009) Putting synthesis into biology: a viral view of genetic engineering through de novo gene and genome synthesis. Chem. Biol., 16, 337-347. 109. Lee CC, Snyder TM, Quake SR. A microfluidic oligonucleotide synthesizer. Nucleic Acids Res. 2010 May;38(8):2514-21. Epub 2010 Feb 21. 110. LaBean T.H., Yan H., Kopatsch J., Liu F., Winfree E, Reif J.H., and Seeman N.C. Construction, analysis, ligation, and self-assembly of DNA triple crossover complexes. Journal of the American Chemical Society, 122: 1848-1860, 2000. 111. Yan H, Zhang X, Shen Z, Seeman NC. A robust DNA mechanical device controlled by hybridization topology. Nature. 2002 Jan 3;415(6867) :62-5. 112. Rothemund PW. Folding DNA to create nanoscale shapes and patterns. Nature. 2006 Mar 16;440(7082):297-302. 113. Shih W.M., Quispe J.D., and . Joyce G.F. A 1.7-kil obase single-stranded DNA that folds into a nanoscale octahedron . Nature, 427(6453) :618-621, 2004. 114. Rothemund P.W.K., Scaffolded DNA origami: From generalized multicrossovers to polygonal networks Nanotechnology: Science and Computation, pp 3-21 (2006). 115. Seelig, G., Soloveichi, D., Zhang, D.Y. and Winfree, E., "Enzyme-Free Nucleic Acid Logic Circuits," Science, 314, pp. 1585-1588, 2006. 116. Adleman, L.: Molecular Computation of Solutions to Combinatorial Problems, Science, Vol.266, pp.1021-1024, 1994. 117. N. C. Seeman, C. D. Mao, T. LaBean, and J. H. Reif, "XOR operations by algorithmic assembly of DNA tiles," Biophys . J., pt. 2, vol. 80, no. 1, p. 45, Jan. 2001. 118. Stojanovic MN, Stefanovic D. Deoxyribozyme-based half-adder. Journal of the American Chemical Society. 2003 Jun;125(22):6673-6. 119. Stojanovic, M.N., Nikic, D.B. and Stefanivic, D. Impl icit OR tiling of deoxyribozymes: construction of molecular scale OR, NAND and four input logic gates. J. Serb. Chem Soc. 68, 321-326 (2003). 120. Stojanovic MN, Stefanovic D. A deoxyribozyme-based molecu lar automaton. Nat Biotechnol. 2003 Sep;21(9):1069-74. 121. Stojanovic MN, Mitchell TE, Stefanovic D. Deoxyribozyme -based logic gates. Journal of the American Chemical Society. 2002 Apr;124(14):3555-61. 122. Macdonald J, Li Y, Sutovic M, Lederman H, Pendri K, Lu WH, et al. Medium scale integration of molecular logic gates in an automaton. Nano Letters. 2006 Nov;6(11) :2598-603. UNCLASSIFIED/ j P"OR. eP"P"ltlAL l:ISE 8Ptllf 52

UNCLASSIFIED/ /FAR AEEICIAl 1::181!! ertt I 123. Lund K, Manzo AJ, Dabby N, Michelotti N, Johnson-Buck A, Nangreave J, et al. Molecular robots guided by prescriptive landscapes . Nature . 2010 May 13;465(7295):206-10. 124. Li JWJ, Tan WH. A single DNA molecule nanomotor. Nano Letters . 2002 Apr;2(4): 315-8. 125. Mao CD, Sun WQ, Shen ZY, Seeman NC. A nanomechanical device based on the B­ Z trans iti on of DNA. Nature. 1999 Jan;397(6715):144 -6. 126. Yurke B, Turberfield AJ, Mills AP, Jr., Simme l FC, Neumann JL. A DNA-fuelled molecular machine made of DNA. Nature. 2000 Aug 10;406(6796) :605-8. 127. Tian Y, He Y, Chen Y, Yin P, Mao CD. Molecular devices - A DNAzyme that walks processively and autonomously along a one-d imensional track. Angewandte Chemie-International Edition. 2005;44(28) :4355-8 . 128. Kang HZ, Liu HP, Phillips JA, Cao ZH, Kim Y, Chen Y, et al. Single-DNA Molecule Nanomotor Regulated by Photons. Nano Letters. 2009 Ju1;9(7):2690 -6. 129. Gu HZ, Chao J, Xiao SJ, Seeman NC. A proximity -based programmable DNA nanoscale assembly line. Nature. 2010 May;465(7295):202-U86. 130. Pei R, Taylor SK, Stefanovic D, Rudchenko S, Mitchell TE, Stojanov ic MN. Behavior of polycatalytic assemblies in a substrate-displaying matrix. Journa l of the America n Chemical Society. 2006 Oct; 128(39) : 12693 -9. UNCLASSIFIED// FOR OFFICIJ!IL U:!I!! f>HL\S 53
